Asus VivoBook Q200E-BSI3T08 Wireless Card Replacement

Geschrieben von: Mitchell Jackson
  • Kommentare: 0
Asus VivoBook Q200E-BSI3T08 Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

1 - 3 Minuten

Einleitung

This guide will show you how to locate and remove the wireless card inside the back casing if you are experiencing wireless connectivity issues .

  1. sRXIyQ3LyALTFKwF
    sRXIyQ3LyALTFKwF
    Wo3XwJeLEvuZlrrX

    • Locate wireless card next to battery.

  2. vgopqrMZCrDbeSJM

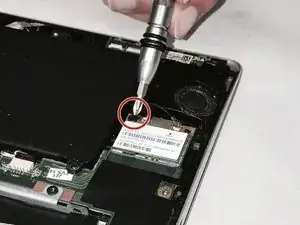

    • Remove the one 4.9mm screw that holds the wireless card in place with a Phillips #00 screwdriver.

  3. bSWMhWryY2iZmNwM

    • Unplug the black coaxial cable from the wireless card.

  4. Em3CkpOJIDVrE4JO

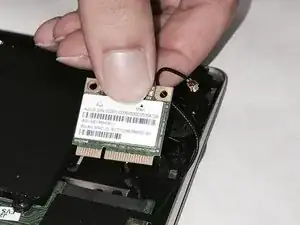

    • Pull the wireless card from connector slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
