Asus VivoBook Q302LA-BHI3T09 Fan Replacement

Geschrieben von: Carl Zuehlsdorf
  • Kommentare: 0
Asus VivoBook Q302LA-BHI3T09 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

The fan maintains the processor in its operating temperature. Dust buildup is common so it is essential to clean the fan occasionally. In extreme cases, the entire fan and heat sink assembly can be replaced.

  1. QF1Fp42FFouEteMO
    QF1Fp42FFouEteMO
    mLO5rxVITFEyrA5U

    • Before doing a repair or replacement make sure the laptop is fully shut off.

    • Using the JIS #0 Screwdriver, unscrew the ten 10 mm screws that hold the back casing in place.

  2. gPnPTEYO4HQKSOJm
    gPnPTEYO4HQKSOJm
    qBJXadGomBTYNZtL

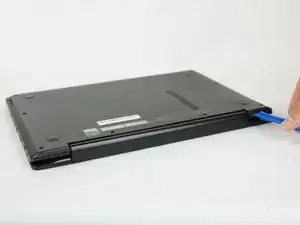

    • Pry open the back casing using the opening tool along the side crevice.

    • Try to use the opening tool at multiple points. Lifting the back casing abruptly could damage the laptop.

  3. ro4wruDpuMlbYyqE
    ro4wruDpuMlbYyqE
    xT3DMlsYvPlTDKRW
    qPfeGMyUitZtJPnb

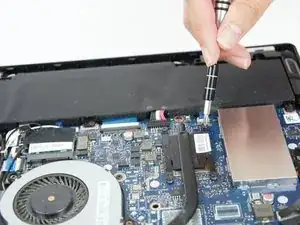

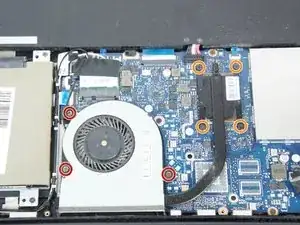

    • Remove the following screws that mount the fan and heatsink to the motherboard:

    • Three 3.0 mm screws for the fan

    • Four 2.0 mm screws for the heatsink

    • The bottom of the heatsink will contain thermal paste. Avoid making contact with this as any dirt or oils can reduce the effectiveness of the cooler.

Abschluss

To reassemble your device, follow these instructions in reverse order.
