Asus VivoBook Q302LA-BHI3T09 Hard Drive Replacement

Geschrieben von: Deric Wright
  • Kommentare: 0
Asus VivoBook Q302LA-BHI3T09 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide can help fix issues such as file corruption, irregular booting, or can be used to upgrade the hard drive. If the drive is defective, follow this guide to replace the existing hard drive.

  1. FBo1c6qSpsFAMITN
    FBo1c6qSpsFAMITN
    cjGjSyye4G2dXRFG

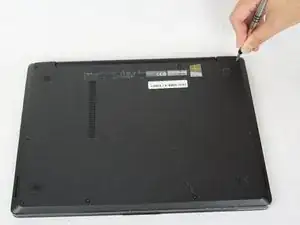

    • Before doing a repair or replacement make sure the laptop is fully shut off.

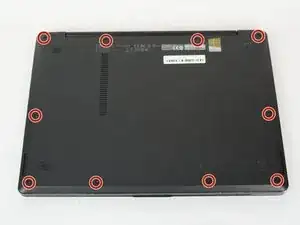

    • Using the JIS #0 Screwdriver, unscrew the ten 10 mm screws that hold the back casing in place

  2. PahJEONf61rBt4hr
    PahJEONf61rBt4hr
    sGeoLryqYAXwBWmd

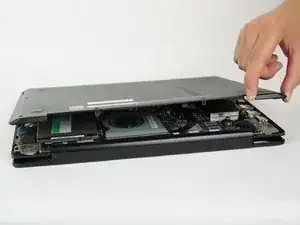

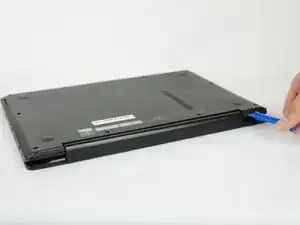

    • Insert the flat edge of the opening tool in between the back casing to remove the back casing.

    • Try to use the opening tool at multiple points. Lifting the back casing abruptly could damage the laptop.

  3. 2Ku4YeajBmK3GqSa
    2Ku4YeajBmK3GqSa
    EuGuVOJQqrMDhwwW

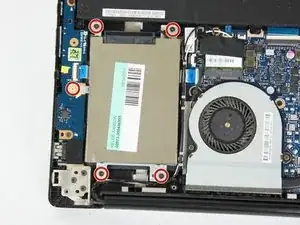

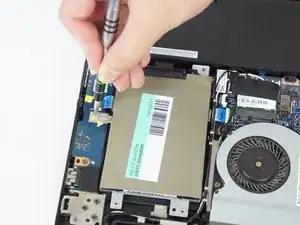

    • Using the JIS #0 Screwdriver, remove the five 3.0 mm screws that hold down the hard drive casing.

  4. iHeeyYcHXORZ5524
    iHeeyYcHXORZ5524
    6MTTrmTXZRdXpabn
    NcBNdDxAJvLZvqG5

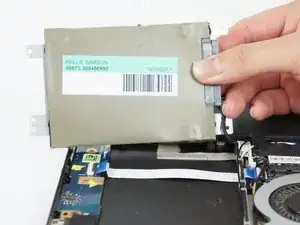

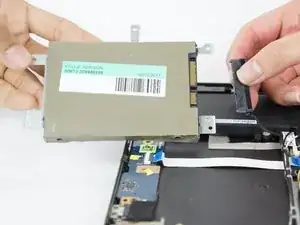

    • Lift the hard drive up and remove the power supply cable connected to it.

    • Make sure to pull on the plastic head and not the actual wires to prevent tearing them.

  5. HY1qeEiI6MVPUHwp
    HY1qeEiI6MVPUHwp
    JRxqArAmmQUMQEHS
    4OdmMSOge3JE6X5s

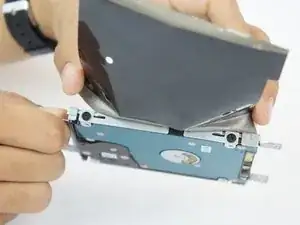

    • Carefully peel back and remove the plastic hard drive cover to reveal the two 3.0 mm screws on the hard drive casing.

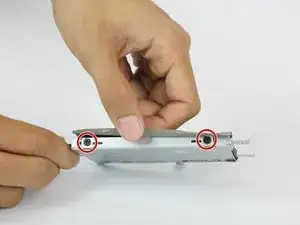

    • Using a JIS #0 screwdriver, unscrew the two 3.0 mm screws on the side of the metal casing to remove the hard drive itself.

Abschluss

To reassemble your device, follow these instructions in reverse order.
