Einleitung

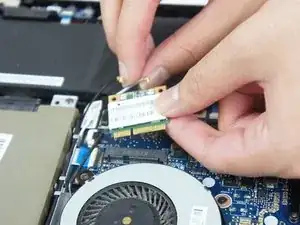

This guide shows how to replace the Wi-Fi chip from the motherboard of the Asus VivoBook. The Wi-Fi chip allows the laptop to wirelessly connect to internet. In rare cases, the Wi-Fi chip may need to be replaced if a power surge fries the chip or the chip itself is defective.
Werkzeuge
Ersatzteile
-
-

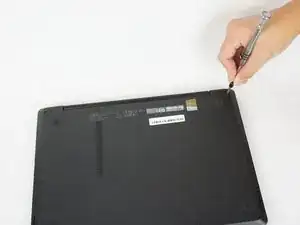

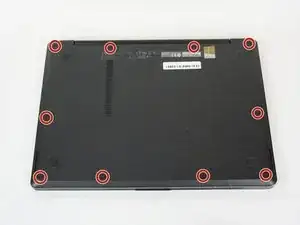

Using the JIS #0 Screwdriver, unscrew the ten 10 mm screws that hold the back casing in place
-
-
-

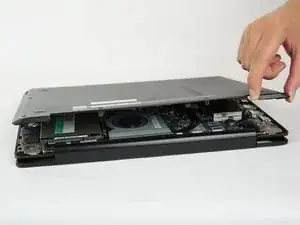

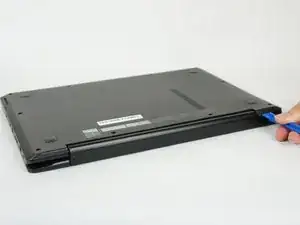

Insert the flat edge of the opening tool in between the back casing to remove the back casing.
-
-
-

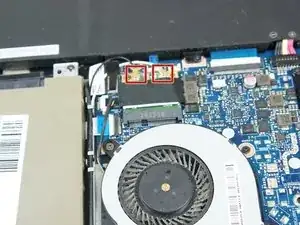

Disconnect the black and white wires that provide power and data transfer to the Wi-Fi chip.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
