Asus VivoBook S200E-RHI3T73 Screen Replacement

Geschrieben von: Shilo Stuart
  • Kommentare: 1
Asus VivoBook S200E-RHI3T73 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

Replace your unresponsive screen to return display to your VivoBook.

  1. UQpPIauIpUVZPGqI

    • With the screen closed, place your laptop upside-down with the front facing you.

    • Remove the five black 80mm Phillips #0 screws.

    • Remove the four black 50mm Phillips #0 screws.

    Middle screw is in fact 90mm and the other 80mm screws will not bite on the thread. Be sure to use the middle screw for the middle only!

    Alex R -

  2. CnvRRUtwmHJRS6MB

    • Use a metal spudger to pry the bottom panel open.

    • Be gentle around the edges.

    • Lift the back panel to expose the inside of the laptop.

  3. 1VSwoim5UEISIN4q

    • Use a metal spudger to remove the clear screen protector from its backing.

    • Apply ample force along the bottom of the screen protector.

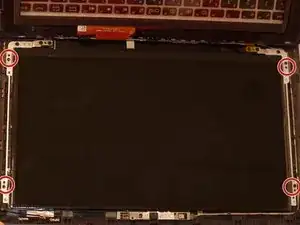

  4. ePS4gJjOQhqmIYNv

    • Using a Phillips #0 screwdriver, remove the four 2mm silver screws located at each of the four corners of the screen.

  5. ZCLf5SXnMOJXtJsO

    • Gently lift the screen up and over.

    • Use tweezers to remove the EX2 LVDS connector cable that connects the screen and the laptop.

    • Remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
