Asus VivoBook S200E-RHI3T73 Wifi Chip Replacement

Geschrieben von: Shilo Stuart
  • Kommentare: 0
Asus VivoBook S200E-RHI3T73 Wifi Chip Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

If your VivoBook continues to fail to connect to the internet after troubleshooting the internet settings, you may need to replace the WiFi Chip.

  1. ZaKZbYZLfVeWAXYK

    • With the screen closed, place your laptop upside-down with the front facing you.

    • Remove the five black 80mm Phillips #0 screws.

    • Remove the four black 50mm Phillips #0 screws.

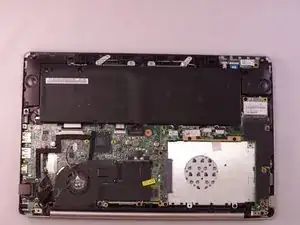

  2. dAQd4cLYVroKpwll

    • Use a metal spudger to pry the bottom panel open.

    • Be gentle around the edges.

    • Lift the back panel to expose the inside of the laptop.

  3. fkSNuaiQQPn2o3kG

    • Use a Phillips J0 screwdriver to remove the one black 3mm screw.

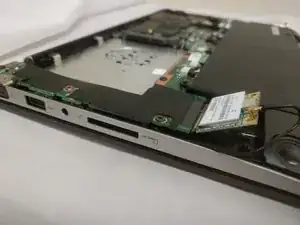

  4. TnJdqBAUojlAsxnb

    • Use an up and away motion to pull the module out of its slot.

  5. JWVKaPsgwrpst2xn

    • Use precision tweezers to pry the black wire with a gold plug off the main gold plug on the module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
