Asus VivoBook X202E-DB21T Trackpad Replacement

Geschrieben von: Shaylee Felker
  • Kommentare: 0
Asus VivoBook X202E-DB21T Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

The trackpad is used to track mouse movements based on finger movements on the pad. This can get damaged easily due to liquid damage, overuse, or dropping the device.

  1. LKdkrHB5TKeGVgfJ
    LKdkrHB5TKeGVgfJ
    P2oxK4mS2XhiJ5MF

    • Flip the device such that the labels are on top.

    • Use a Phillips #1 screwdriver to remove the four 8mm screws near the back.

    • Use the same screwdriver to remove the four 5mm screws in the front.

    • Use the same screwdriver to remove the single 9mm screw in the center.

    • Make sure that the device is powered down and unplugged.

  2. Lnsq6IVhuTVMTSK1
    Lnsq6IVhuTVMTSK1
    k6qoSjjR2WXIeeam

    • Remove the back cover by gently prying with a spudger.

  3. 3inPJ1SGTkaWDMkg
    3inPJ1SGTkaWDMkg
    kopYG66ha6P6XC6r

    • Remove the eight 5mm screws using a Phillips #1 screwdriver.

    • Do not puncture the battery.

  4. W6UoixvJyDs5gjEn

    • Disconnect the battery ribbon cable from the motherboard.

  5. d4SVFC6OBs6rZwZL

    • Remove the battery from the laptop.

  6. XPLUYAIDCd5JVqwS
    XPLUYAIDCd5JVqwS
    6dYJKBWr5pJqRngb

    • Remove the ten 4mm screws using a Phillips #00.

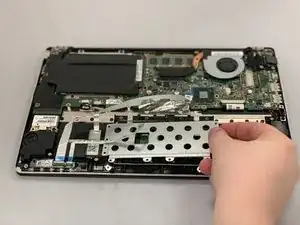

  7. A1WVeEkTipHrlFvX

    • Carefully remove the metal plate from the laptop.

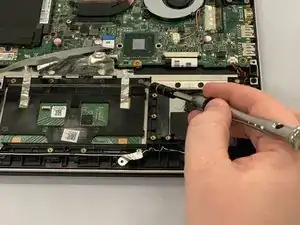

  8. IAWE3betrFUNJtnJ

    • Remove the four 5mm screws from the trackpad using a Phillips #00.

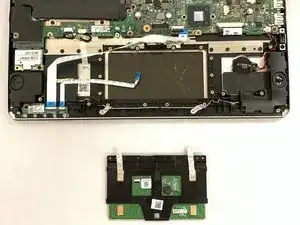

  9. To4ChBBEZJTJrgQN

    • Remove the trackpad from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
