First of all you need to remove the 10 screws holding the laptop together.
-
Then use plastic or metal spudger to separate the bottom cover from the keyboard and touchpad assembly.
-

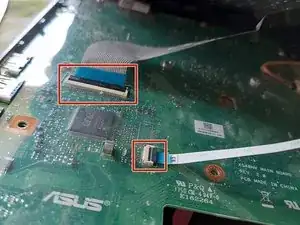

Once you open it, carefully unplug the keyboard and touchpad connectors. Be very careful not to damage them!
-
-
-

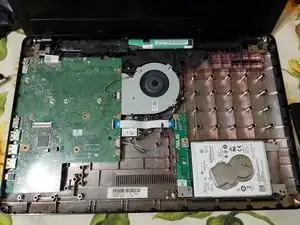

Once you open it, it should look like this.
-

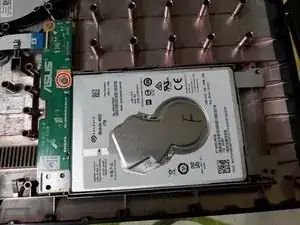

You need to unscrew the only screw (marked in red) to be able to remove the HDD.
-

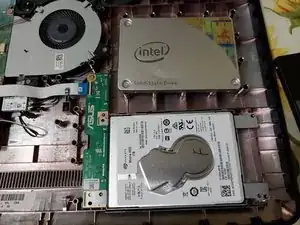

When you do that, just unscrew the 4 screws attatching the HDD to the bracket and replace it with the new one.
-
To reassemble your device, follow these instructions in reverse order.
