Asus VivoBook X540SA-BPD0602V Display Replacement

Geschrieben von: Taylor Peters
  • Kommentare: 1
Asus VivoBook X540SA-BPD0602V Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

7 - 10 Minuten

Einleitung

In the case of a cracked or broken display screen on your ASUS VivoBook X540SA-BPD0602V, a screen replacement may be necessary to restore the laptop to its normal functionality. This guide will walk the user through replacing the device's LCD display screen, through step-by-step instructions. All power sources, including the battery, should be removed before completing any repairs or replacements within the device.

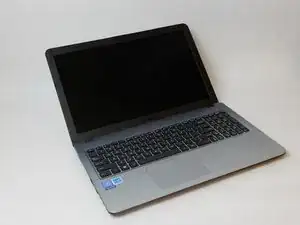

  1. E3iuiAt4O5EKgVox

    • Power down the laptop using the device's power button in top right corner of the keyboard. Ensure that the device's power cord is disconnected.

  2. Ccg5uYZp6prhXEHp

    • Flip the laptop over so the back panel is displayed.

  3. CdHjEFidCUCEQDZM

    • Using a Phillips #1 screwdriver, remove the ten screws from the back panel.

    • Remove the two battery screws (15.6 mm)

    • Two top corner screws (12.5 mm)

    • Six case screws (9.7mm)

  4. NBm4tVPgVFTKYvbU

    • Flip the laptop back over and open it, revealing the screen and keyboard.

  5. nqVieglwdWwJclN4

    • Using the blue plastic opening tool, wedge and loosen the seal all the way around the edges. Carefully lift up the keyboard panel.

    • When lifting the keyboard panel, do not lift it all the way as the two connection ribbons to the motherboard must be disconnected.

    • It is recommended to break the seal of the case starting at the upper corners closest to the display monitor .

  6. QvvLGdeKjYsL5ZUZ

    • Observe where the ribbons connect to the motherboard, there are two connections. Each connection has a black clamp. To remove the ribbon, lift the black clamp up to disconnect it.

  7. aswnMWnfdeRccZ6t

    • Very carefully, remove the batteries with the blue plastic iFixit opening tool. Focus removing the battery near the highlighted area.

    • The batteries should all be connected to one another and come out of the device as a single unit.

    • Be careful not to rip any of the black plastic covering the batteries. Exposed battery parts can lead to explosions. If the case is ripped, re-wrap them, or properly dispose of them. Do not reuse them.

  8. tQkRkl5FQoUeh2sa
    tQkRkl5FQoUeh2sa

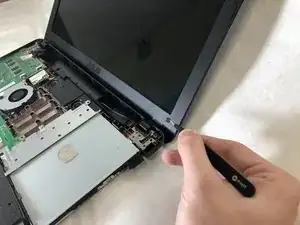

    DXHbQqudOVOAQFkq

    • Use tweezers to remove small plastic screw covers from the bottom corners of the screen.

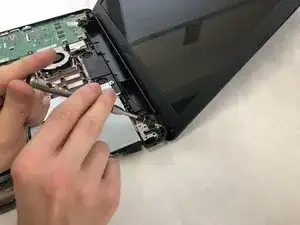

  9. 6O1V2DTCwYefd4aV

    • Using the Phillips #0 screwdriver, remove the screws (3.8mm) from the bottom corners of the screen.

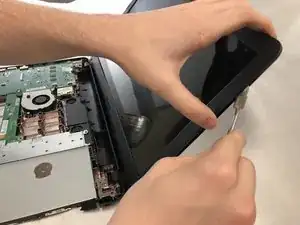

  10. PtbKv1ZlSdsOLxDN
    PtbKv1ZlSdsOLxDN
    jiZLyAPxsABBqYRl

    • Gently go around the screen and pry the plastic frame away with the metal spudger.

    • Before disconnecting the bottom edge of the plastic frame, be sure to disconnect it from the laptop's hinges.

    • Be careful with the metal spudger in this process--it is easy to cause damage to the device with this tool.

  11. qc4nVhMotXBgD2SR
    qc4nVhMotXBgD2SR

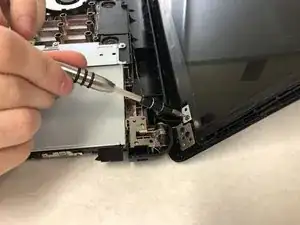

    PSASfUniOy1YKY5B

    • Remove screws (3.5mm) from the four corners of the screen, utilizing Phillips #0 screwdriver.

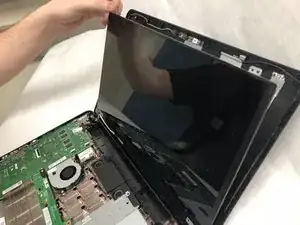

  12. JZsWmJIbQKL1FLrL

    • Gently pull the display away from where it is seated in the device.

    • Note that there is a connection to the motherboard at the bottom of the display. Take care not to pull too hard on this connection when removing the display.

  13. XQM3HIyI25sbSeJE

    • Rotate the display to expose the motherboard connection at the bottom of the display, and disconnect.

    • There may be tape supporting the connection which must be removed first if present.

Abschluss

To reassemble your device, follow these instructions in reverse order.
