Asus VivoTab Note 8 Battery Replacement

Geschrieben von: Ryan Spencer
  • Kommentare: 0
Asus VivoTab Note 8 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

2 - 5 Minuten

Einleitung

When removing the battery, it may get damaged. The battery is rechargeable however may need replacement if it is broken.

  1. phGgSWCcDV4r1AVH

    • Remove the pen and memory card if you have them; they may get in the way when you are opening the device.

    • Pry open the edges of the cover using the plastic opening tool. The memory card slot is very useful for getting started.

  2. CBNrMGalyOWYSKvp
    CBNrMGalyOWYSKvp
    yq2kvyZtfDgBk4Dl

    • Move the opening tool along the edges of the tablet and push up wherever you can. You may need to open up all of the sides to take the panel off.

    • Pull apart the sides of the casing by hand.

  3. gUijfwnmdbRRbMyZ

    • After pulling the panel off, put it to the side.

  4. ed4BCaRRN5XrPMR2
    ed4BCaRRN5XrPMR2
    lXjRvOWQuNUfwPaR

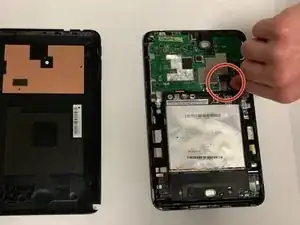

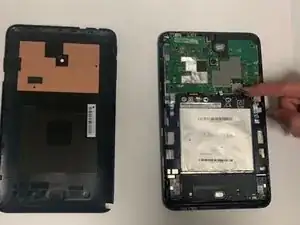

    • Disconnect the battery from the motherboard by pulling the side of the black plastic up.

  5. MaXPj3NycMKqGYdg
    MaXPj3NycMKqGYdg
    3s5awopqFeiwZ4GA

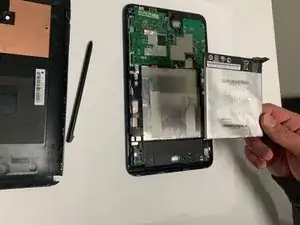

    • Use a plastic opening tool to pry up the battery.

    • Be careful not to tear the battery; it is very hard to pull up the battery so go slowly.

    • After the tape is loose take the battery out.

Abschluss

To reassemble your device, follow these instructions in reverse order. You will need adhesive to keep the battery stuck if the tape stops working.
