Einleitung

If your tablet's battery will not hold a charge, this guide will show you how to replace the battery in 13 quick and easy steps.

  1. mT2n5mfZSmdvUxmR
    mT2n5mfZSmdvUxmR
    5OILILJiyFuIVopZ
    dFxitp3LtBcyLOhe

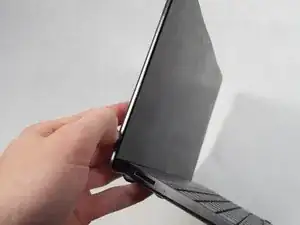

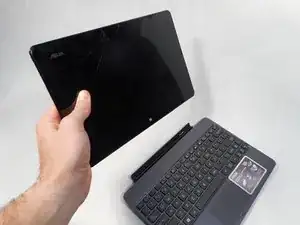

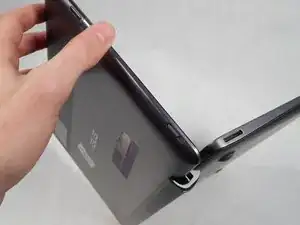

    • Make sure the tablet is turned off.

    • Remove the tablet from the attached keyboard.

    • To remove the keyboard, simply depress the switch on the left side of the screen and pull the tablet portion off.

  2. GIXcfk1JVB4dWkGM
    GIXcfk1JVB4dWkGM
    4WPmHvKt2ITQ6iGh
    ATBDdANTvIqXQuna

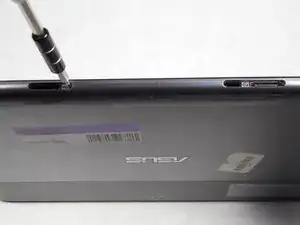

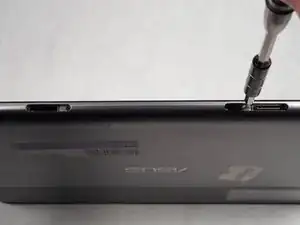

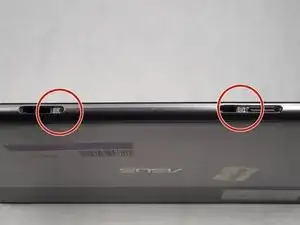

    • Rotate the device 180°, and remove the two 1.59 mm screws at the bottom of the device.

    • Use the Phillips screwdriver size PH000 to remove the two 1.59 mm #000 screws.

  3. v52O1fpPNXnV5epk
    v52O1fpPNXnV5epk
    SMvat5xgdxDIDQEK

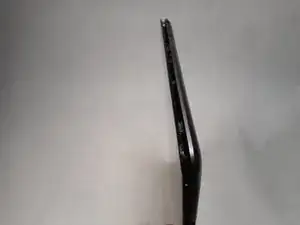

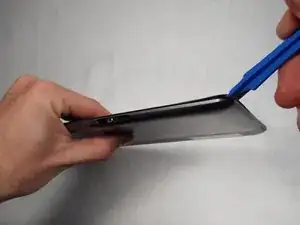

    • Use the plastic opening tool to help detach the screen from the back panel.

    • Insert the plastic opening tool into the bottom right corner and gently start to pry off the screen.

    • Once the screen begins to separate from the body of the device, start working the tool around the outer edges until the entire screen becomes detached.

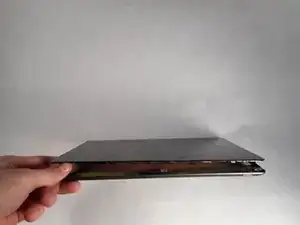

  4. QIHW4eEekmx4q6bN
    QIHW4eEekmx4q6bN
    NTFMlAkhwxxHxQAP

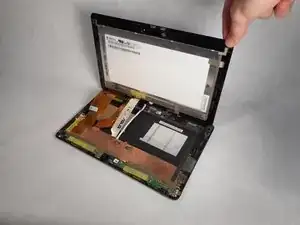

    • Now that the screen is completely detached, lay the back panel flat on a smooth surface.

    • Lift the screen to view the inside of the tablet.

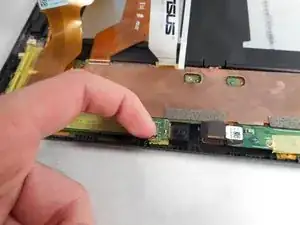

  5. yptYYCwUG1dPLVLS
    yptYYCwUG1dPLVLS
    Cl1iX3Gdmy2ZMmk2

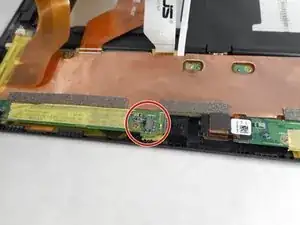

    • Before disconnecting the display cables, turn off the switch labeled DIP; this switch is used to de-energize the system.

    • The battery is connected to the motherboard. To avoid any short circuiting of the device, you must place the switch labeled DIP to OFF.

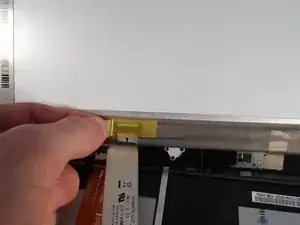

  6. BV4vnVx1iKdJnaaJ
    BV4vnVx1iKdJnaaJ
    HapKGNewUILAoyQl
    PaBhmblRsNAWyrLU

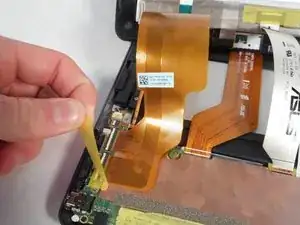

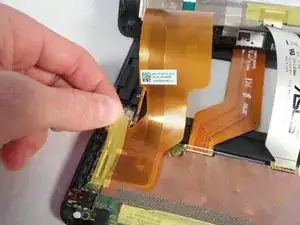

    • Remove the yellow tape covering the end of the cables.

  7. eQTyHBSEFBUhucUX
    eQTyHBSEFBUhucUX
    IrjNUnBFquhPYEsX

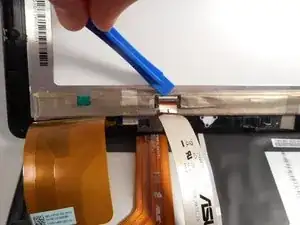

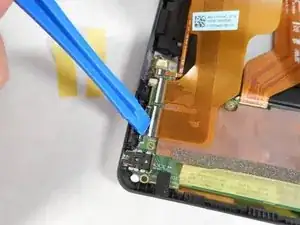

    • After lifting the yellow tape, you should be able to see a white strip. The white strip is actually a lever.

    • Use the plastic opening tool to push in the levers.

  8. PJZPgCERQanPW3O6
    PJZPgCERQanPW3O6
    3M6ejgKksHAqYMlv
    kO6JjyyYVUXeA2In

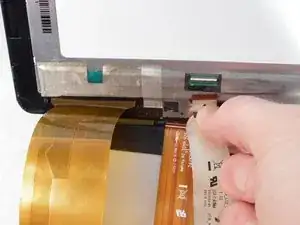

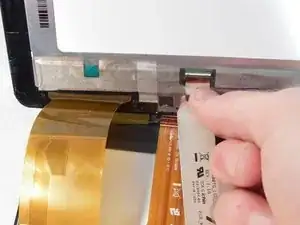

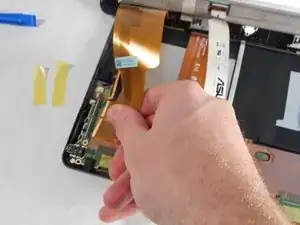

    • With all three white levers pushed in, gently pull on each display cable until the cable disconnects.

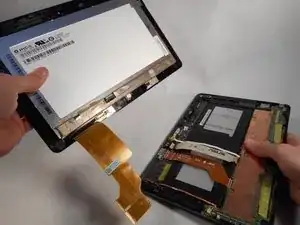

  9. gUhXKkBHyRMVSa3j
    • Lift the screen upwards to remove.

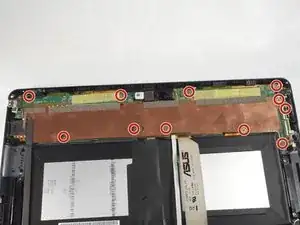

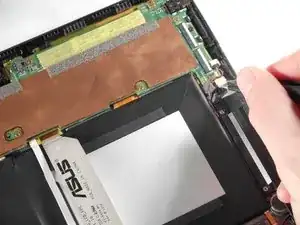

  10. GMnyrGNZAJMqm3YN
    GMnyrGNZAJMqm3YN
    yOOEp1RX6JdEtAkS
    2yeKUSxjiQQWN1QM

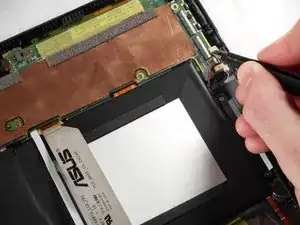

    • Rotate the Tablet clockwise, so that the motherboard is facing away from you.

    • Remove the eleven 0.79 mm #000 screws around the motherboard with the Phillips #000 screwdriver.

    • Remove the two wire connection on the right side of the tablet with the pointed precision tweezers.

    • Be careful the pointed precision tweezers are very sharp.

  11. Rb3TEpLcZTwwSWFw
    Rb3TEpLcZTwwSWFw
    3gVbMjuGTyvgSk3N
    xXZfdiw5CxNIPcop

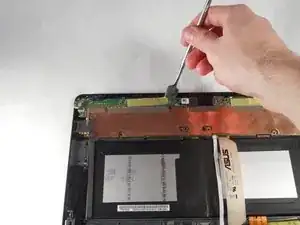

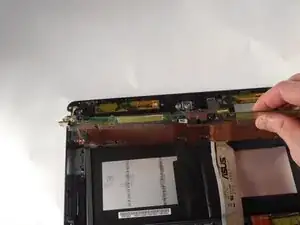

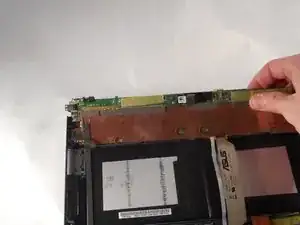

    • Use the nylon or metal spudger to help pry the motherboard from the back panel.

    • Once the mother board is relieved from the glue, use your hand to lift the motherboard up and to the opposite end of the back panel.

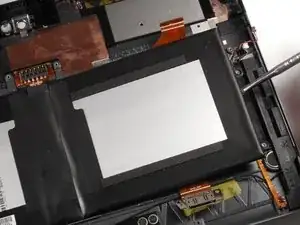

  12. QuOq4VL4IGILWNZM
    QuOq4VL4IGILWNZM
    vnxU1oO2Se6WMTHU
    JPUTmP6E2iVeQQdK

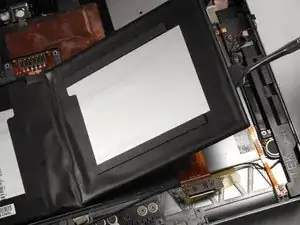

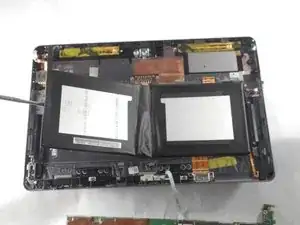

    • Use the nylon or metal spudger to pry the battery from the back panel.

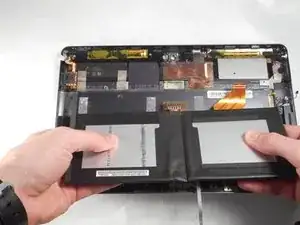

  13. NXs4l4yWOlpi2ADN
    NXs4l4yWOlpi2ADN
    RvRpSX5wekogsqJU

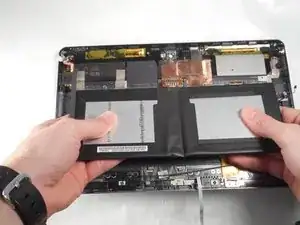

    • Gently lift the battery over its connection prongs with both hands.

    • Remove the battery and replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
