Asus VivoTab Smart Battery Replacement

Geschrieben von: Zach Hatten

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will show you how to remove the back panel and remove/replace the battery for the Asus VivoTab Smart tablet.

Once you are done, calibrate your newly installed battery by draining it below 10% and then charging it uninterrupted to 100%.

Power off the device before you begin disassembly.

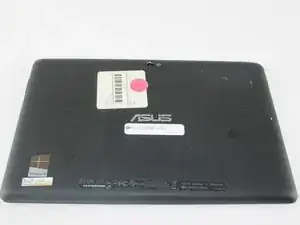

Place the device face down on a flat surface.

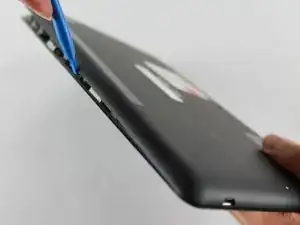

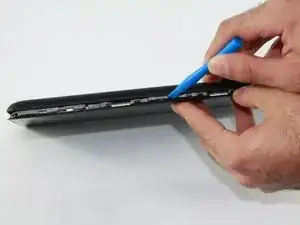

Remove the back panel with the plastic opening tool by sliding the tool around the edge of the panel.

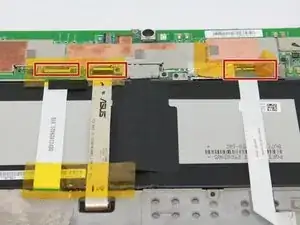

Remove the tape covering the 3 ribbons by peeling it off with your hands or with the tweezers.

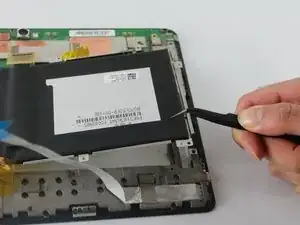

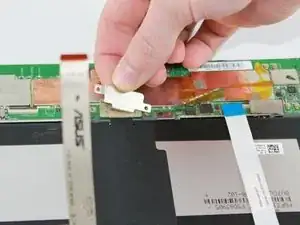

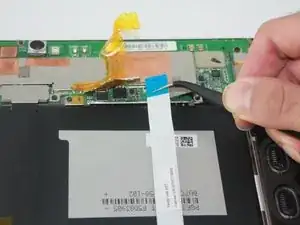

Carefully detach the ribbons from the device's motherboard by pulling outward using tweezers.

The Philips #00 Screwdriver listed in the recommended tools will fit all the screws.

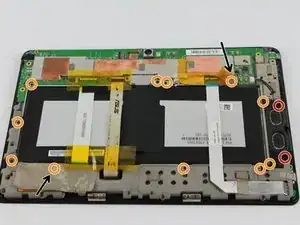

Remove the tape covering the areas marked by the black arrows

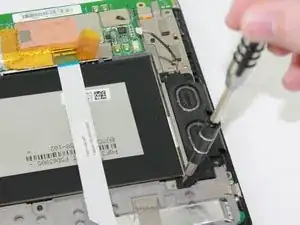

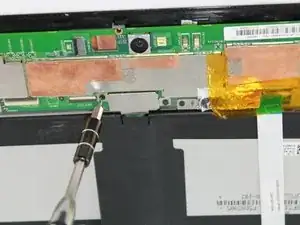

Remove two 3.7 mm Phillips #00 screws
Remove eleven 2.7 mm Phillips #00 screws

Be careful not to damage the speaker wire.

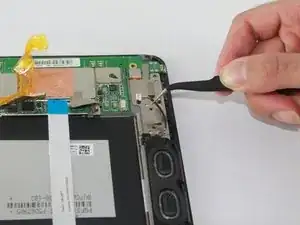

Gently unplug the speaker from the motherboard by grabbing the wire near the plastic white plug with tweezers and gently pulling.

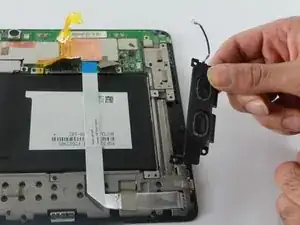

Lift up on the speaker with your fingers to remove it.

The battery is secured to the tray by a strong adhesive. Take care not to bend the tray when removing the battery.

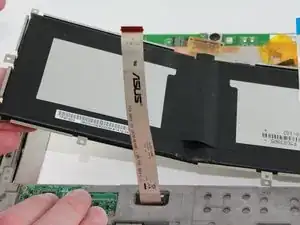

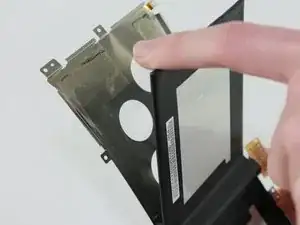

Detach the battery from the tray by pulling the battery up from the tray with your hands.
If it is very difficult to lift the battery from the tray, you can use a blow dryer to heat the back side of the tray. This will weaken the adhesive and make it easier to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
