Asus Vivobook Flip 14 TP410U LCD Assembly Replacement

Geschrieben von: Dominic Bento
  • Kommentare: 0
Asus Vivobook Flip 14 TP410U LCD Assembly Replacement

Schwierigkeitsgrad

Difficult

Schritte

5

Zeitaufwand

25 - 50 Minuten

Einleitung

A display can eventually die due to extensive use, or a majority of the times, receive too much damage that it won't function properly. This guide should be followed in order to replace the LCD assembly.

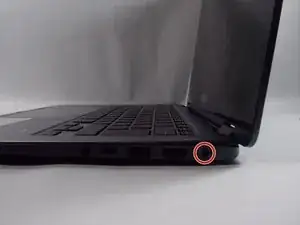

  1. YamXmfmxZAKVatIQ

    • Turn off the power and disconnected the AC cable from the laptop.

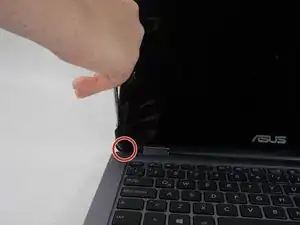

  2. cQoEQFe1BsaISnAj
    cQoEQFe1BsaISnAj
    232WTTXQkuHgbTOZ

    • Remove the rubber covers for the two screws located at the bottom of the screen.

    • Use a Phillips #00 screwdriver to remove the two 6.4 mm screws outlined in the image.

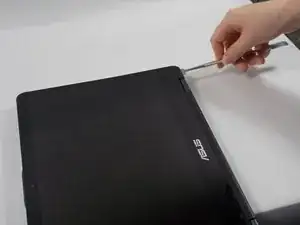

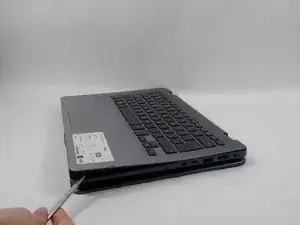

  3. vDXYQlcVyOFrecYM
    vDXYQlcVyOFrecYM
    wqlUxtcjcGPtI3uG

    • Excessive force may cause damage to connections.

    • Rotate the screen 360 degrees for ease of access.

    • Place the opening tool at the corner of where the screen meets the base of the laptop.

    • Pry open the screen along the edge until it is completely off the front cover.

    • Disconnect each appropriate connector while opening up the laptop.

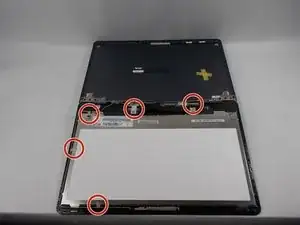

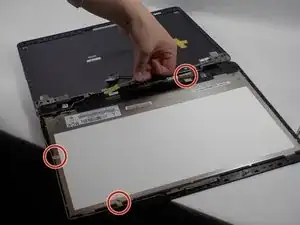

  4. 3RsLYVm12HT3WTTr
    3RsLYVm12HT3WTTr
    cR6oLnLSO4iBECGY

    • Excessive force should avoided since damage may accrue.

    • Remove the cable that connects to the touch display, front camera, and motherboard.

    • Remove each piece of tape that holds down each cable.

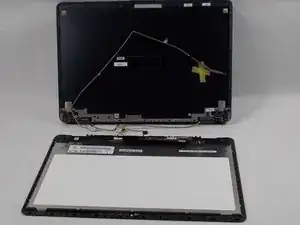

  5. wyLFhEXLYiNIGOkf

    • Have the new LCD display fully unboxed and ready to be used.

    • Remove the old LCD display.

    • The touch screen sensor is extremely fragile, make sure to not put excessive force on the cable while assembling.

Abschluss

To reassemble your device, follow these instructions in reverse order.
