Asus Vivobook Max X541SA-PD0703X CD drive Replacement

Geschrieben von: Mayar Eskandarani

Kommentare: 2

Asus Vivobook Max X541SA-PD0703X CD drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

The Disc Drive is an essential part of the laptop which is needed to read or write data onto a CD. This guide will show you how to remove and replace the Disc Drive drive of the Asus Vivobook Max X541SA-PD0703X.

Werkzeuge

Ersatzteile

disc drive

Schritt 1

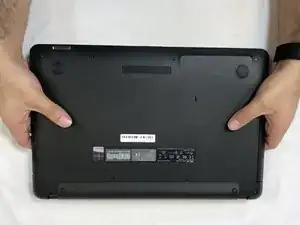

Flip the laptop upside down so that the back of the laptop faces you.

Schritt 2

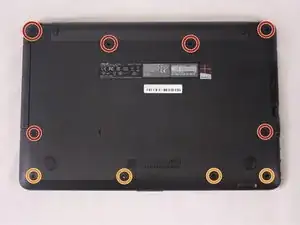

Remove the following ten Phillips #0 screws from the bottom of the laptop:
Six 13mm screws.
Four 11mm screws.

Schritt 3

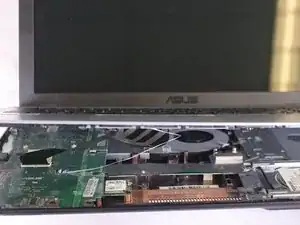

Using a plastic opening tool, pry up the palm rest from the bottom case of the laptop.
Don't completely remove as there are ribbon cables connecting the two halves.

Schritt 4

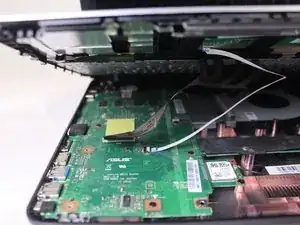

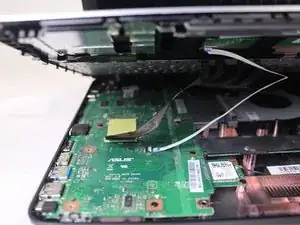

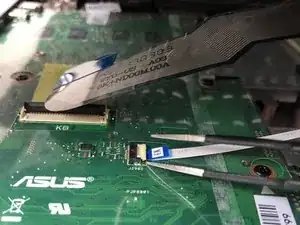

Use a spudger to flip up the retaining flaps on both keyboard ribbon cable ZIF sockets.
Pull the ribbon cables out of their sockets.

Schritt 5

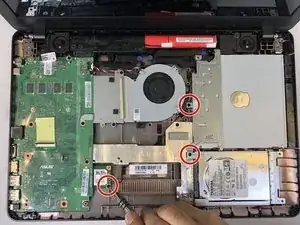

Remove the three 6mm Phillips #0 screws from the motherboard.

Schritt 6

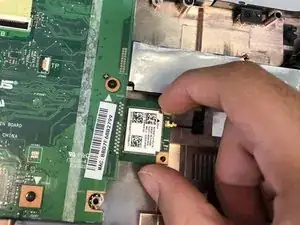

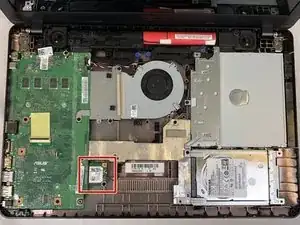

Pull the Wi-Fi card out of the motherboard.

The removal of the wifi card seems unnecessary for removing the hard drive.

Jakub Šušlík -

Schritt 7

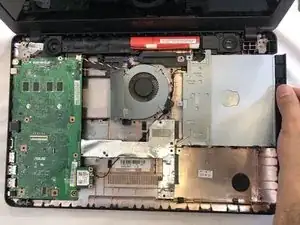

Remove the hard drive by pulling it towards the right, and removing it from the laptop case
