Asus Vivobook Max X541SA-PD0703X Wi - Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 - 45 Minuten

Einleitung

This guide will show you how to replace the Wi - Fi Card of your Asus Vivobook Max X541SA-PD0703X. In order to replace the Wi - Fi Card, you do not need to remove any other parts.

  1. l1uv2IqCghM25WAt

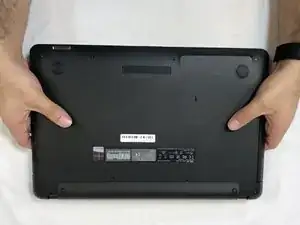

    • Flip the laptop upside down so that the back of the laptop faces you.

  2. p5FWwKKhtDubbNyS

    • Remove the following ten Phillips #0 screws from the bottom of the laptop:

    • Six 13mm screws.

    • Four 11mm screws.

  3. d1JwLQ3UCBylUaLi
    d1JwLQ3UCBylUaLi
    RDSfkhdrO1wPEyAf

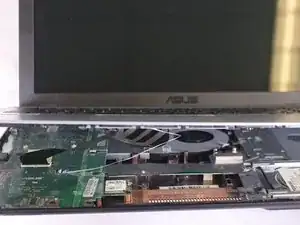

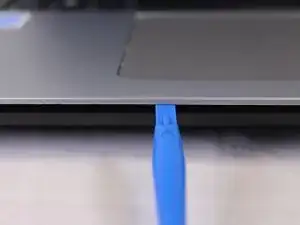

    • Using a plastic opening tool, pry up the palm rest from the bottom half of the laptop.

    • Ribbon cables still connect both halves so don't remove completely.

  4. dJDRFxjYoaTOsXdZ
    dJDRFxjYoaTOsXdZ
    IKUxiKaUkAxWduWV
    RkbKjckuCqRhFDjG

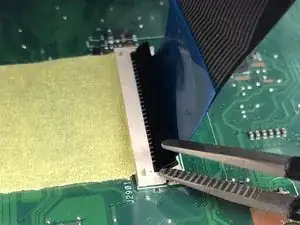

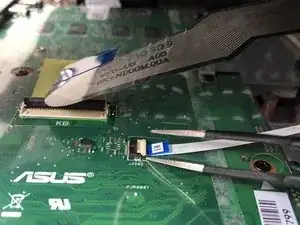

    • Use a spudger to flip up the retaining flap on the keyboard ribbon cable ZIF sockets.

    • Pull the ribbon cables out of their sockets.

  5. o2gcINTpshxdktvM

    • Remove the 6mm Phillips #0 screw from the Wi-Fi card.

  6. ZThLhCH3LbRBSgw2

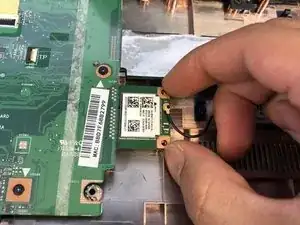

    • Pull the Wi-Fi card out of the motherboard.

  7. PraAGnjEHw6mkWrN

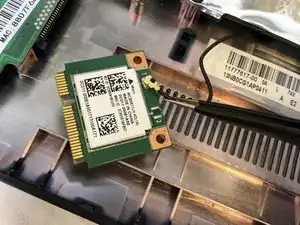

    • Disconnect the antenna cable from the Wi-Fi chip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
