Asus Vivobook Q301LA-BHI5T02 Back Cover Replacement

Geschrieben von: Nicholas De La Guardia
  • Kommentare: 2
Asus Vivobook Q301LA-BHI5T02 Back Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 7 Minuten

Einleitung

This guide will explain how to replace the back cover of this device.

  1. 1l4YeTZhEwxmZZWe

    • Make sure the computer is turned off.

    • Flip the device over so that the back cover is facing you.

  2. lJG4TWMhysBQOLKW
    lJG4TWMhysBQOLKW
    3c36cGUlNbhQuocn

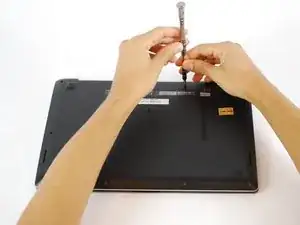

    • Remove the four 5mm Phillips #1 screws from the top of the laptop.

    • Remove the two 6mm Phillips #1 screws from the sides of the laptop.

    • Remove the four 2mm Phillips #1 screws from the bottom of the laptop.

  3. wojWGOaBqHDAEjtu
    wojWGOaBqHDAEjtu
    Z6uUvsON3wXA6r6N
    VcZPpsBmlHwrXgvK

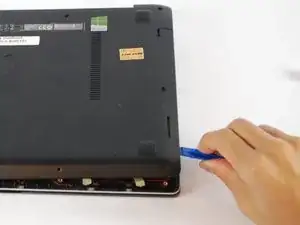

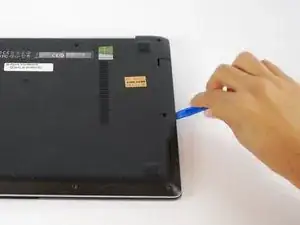

    • Use a plastic opening tool to gently pry the bottom of the laptop up. Slowly slide it along the edges, twisting it every so often to pop the bottom of the laptop out of the clips holding it in place.

    Its not phisically possible if i will try harder the laptop will break in half

    Disturbed Asylum -

  4. phSl31F1akP5eaeN

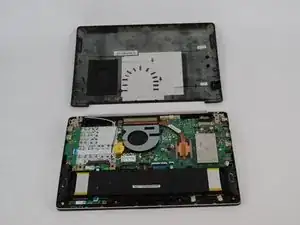

    • Lift off the cover and remove the back cover from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
