Asus Vivobook Q301LA-BHI5T02 RAM Replacement

Geschrieben von: Jorge Villarreal
  • Kommentare: 1
Asus Vivobook Q301LA-BHI5T02 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This replacement will help upgrade the overall performance of the laptop. Extreme care when removing the chips from the RAM slot. Tools required are screw driver and plastic spudger.

  1. 1l4YeTZhEwxmZZWe

    • Make sure the computer is turned off.

    • Flip the device over so that the back cover is facing you.

  2. lJG4TWMhysBQOLKW
    lJG4TWMhysBQOLKW
    3c36cGUlNbhQuocn

    • Remove the four 5mm Phillips #1 screws from the top of the laptop.

    • Remove the two 6mm Phillips #1 screws from the sides of the laptop.

    • Remove the four 2mm Phillips #1 screws from the bottom of the laptop.

  3. wojWGOaBqHDAEjtu
    wojWGOaBqHDAEjtu
    Z6uUvsON3wXA6r6N
    VcZPpsBmlHwrXgvK

    • Use a plastic opening tool to gently pry the bottom of the laptop up. Slowly slide it along the edges, twisting it every so often to pop the bottom of the laptop out of the clips holding it in place.

    Its not phisically possible if i will try harder the laptop will break in half

    Disturbed Asylum -

  4. phSl31F1akP5eaeN

    • Lift off the cover and remove the back cover from the device.

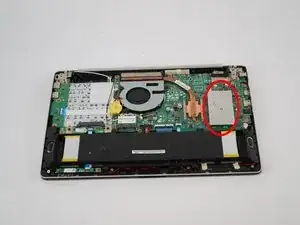

  5. 6AyfJ1Nl2mGmUyGW
    6AyfJ1Nl2mGmUyGW
    GbnvEZHqFPXs4chi
    UT4TcpK5lWv6y4XT

    • Remove the top covering the RAM chips.

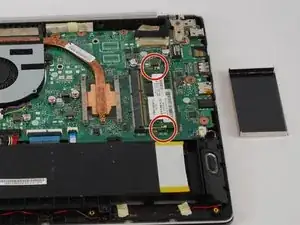

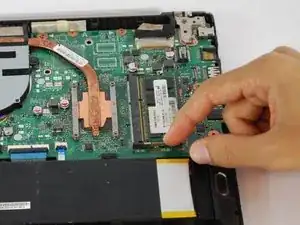

  6. 1s5Y4VrE3LeZFX3A
    1s5Y4VrE3LeZFX3A
    R6ajtsjcgX2LpYhu
    6LfJLAFuYOpBtVRN

    • Gently push the RAM chip holder to the sides.

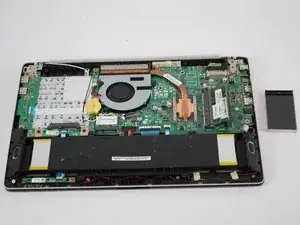

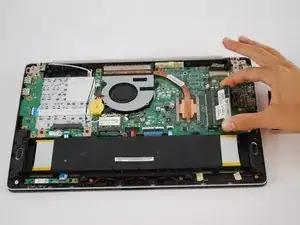

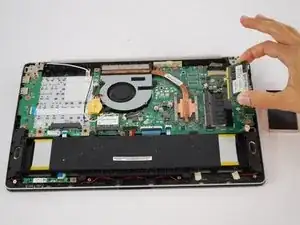

  7. VB3vCehRxWKHWLvF
    VB3vCehRxWKHWLvF
    Wsql4SV6WvyvVjsn
    sSNSgtCm4BRgB6TC

    • Remove the RAM from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
