Einleitung

This guide will help you replace a defective screen, patience and extreme care is required. It will require a major disassembly of the laptop.

  1. 1l4YeTZhEwxmZZWe
    • Make sure the computer is turned off.

    • Flip the device over so that the back cover is facing you.

  2. lJG4TWMhysBQOLKW
    lJG4TWMhysBQOLKW
    3c36cGUlNbhQuocn
    • Remove the four 5mm Phillips #1 screws from the top of the laptop.

    • Remove the two 6mm Phillips #1 screws from the sides of the laptop.

    • Remove the four 2mm Phillips #1 screws from the bottom of the laptop.

  3. wojWGOaBqHDAEjtu
    wojWGOaBqHDAEjtu
    Z6uUvsON3wXA6r6N
    VcZPpsBmlHwrXgvK
    • Use a plastic opening tool to gently pry the bottom of the laptop up. Slowly slide it along the edges, twisting it every so often to pop the bottom of the laptop out of the clips holding it in place.

    Its not phisically possible if i will try harder the laptop will break in half

    Disturbed Asylum -

  4. phSl31F1akP5eaeN
    • Lift off the cover and remove the back cover from the device.

  5. iMW3A1KCoAM5RqR1
    iMW3A1KCoAM5RqR1
    stReGmHIXGZvJQs5
    YrRUoMjHoVNrAR5s

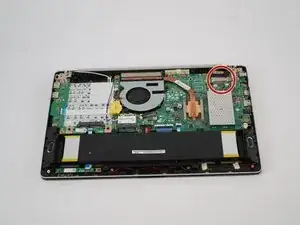

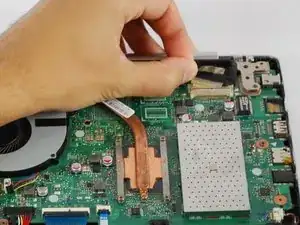

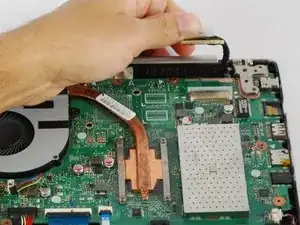

    • Unplug the screen connector from the motherboard.

  6. xXtRYjgPp2joiPWD
    xXtRYjgPp2joiPWD
    TjAEesuC2Dwbsbrx

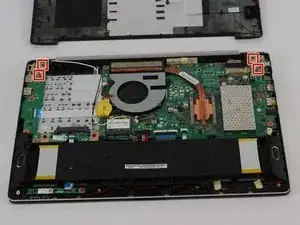

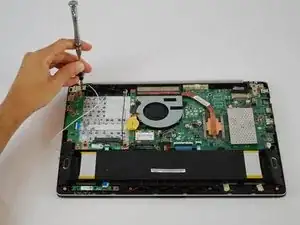

    • Using a Phillips #1 Screwdriver unscrew the four 4 mm screws holding the screen holder onto the motherboard.

  7. CImwlfYQVGk5vn5D
    CImwlfYQVGk5vn5D
    qFLIDYp5Xi2BQaHI
    gladpACwfh2QfZNf

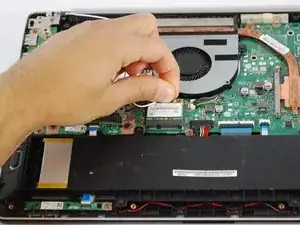

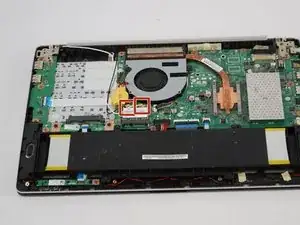

    • Remove the two cables connecting to the wifi card.

  8. iMsD6Ruc1FIVUVdt
    iMsD6Ruc1FIVUVdt
    xmuGJLV5qbIdJOFa
    pKKN4WDksT5rFApn

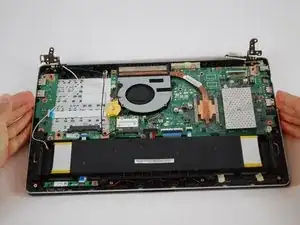

    • Remove the screen holder from the rest of the laptop.

    • Make sure when removing screen cover lift bottom of the laptop to about a 45° degree angle when removing it.

  9. QaH2EsbSRiuxdJAQ
    QaH2EsbSRiuxdJAQ
    aoNukgPcfLMfTEMU

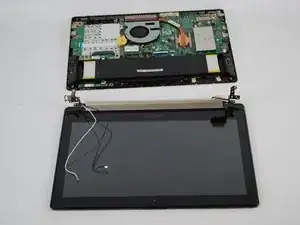

    • Remove the bottom of the laptop from the screen.

  10. Wiq1wIQd6w1Mh23Q
    Wiq1wIQd6w1Mh23Q
    yYpjvcVYsA1IjuNK
    ENGjDxX2JZGCHrOm

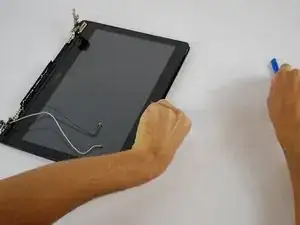

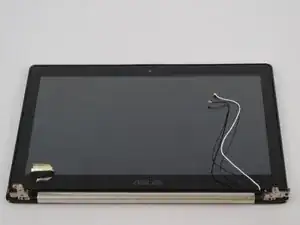

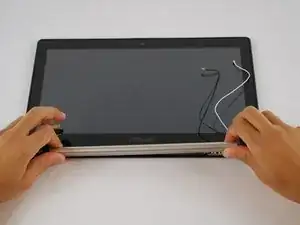

    • Remove the hinge cover by gently pulling to the right then upwards.

  11. eTqZrTHNvRCXLYyD

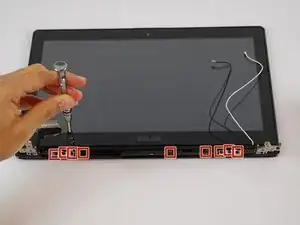

    • Using a Phillips #1 Screwdriver unscrew the six 3 mm black screws and the three 2 mm copper screws that are keeping the screen in place.

    • Keep track of what screws go where.

  12. DFlm2FqGEIINryEg
    DFlm2FqGEIINryEg
    IdJpBvJOTHKF5YTv
    1RSkQJATNyS4HJue

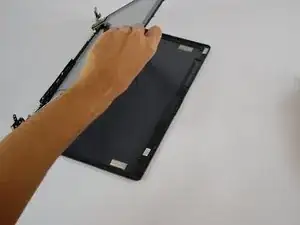

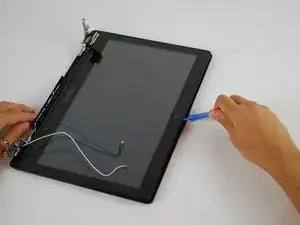

    • Push screen downwards then pull top of screen upwards and remove the screen.

  13. VZboFoVK1UShpZaZ
    VZboFoVK1UShpZaZ
    SgGsmLdCwSubYvLX

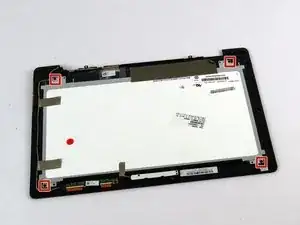

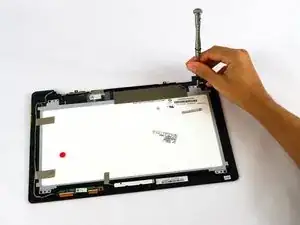

    • Using a Phillips #1 Screwdriver Unscrew the four 2 mm screws holding the screen onto the screen cover.

    • Use the PH0 bit screwdriver to unscrew the screws.

  14. RL3XRyZQOkQPCTPt
    RL3XRyZQOkQPCTPt
    RQFAPCGWCfxSwnFO
    GrvaHZZq45oIYdG1

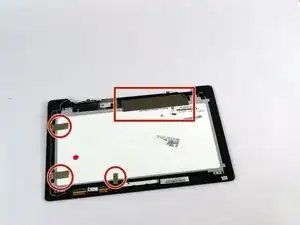

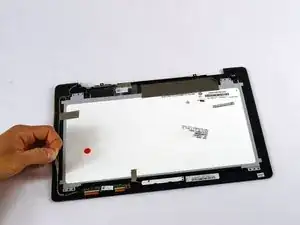

    • Use a sharp object to remove tape from the back of the screen.

    • Careful when cutting the tape off, you can accidentally cut a wire

  15. WIHoHjNqlY2Ry1IA
    WIHoHjNqlY2Ry1IA
    SxoujAidugTf5GGl
    TkuJCs6Ydo4ECpPX

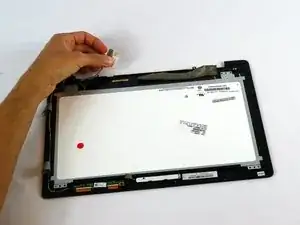

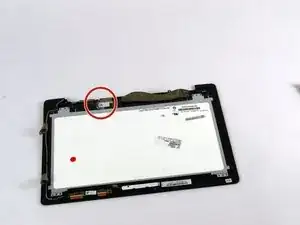

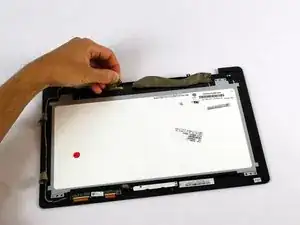

    • Unplug the screen from the screen holder.

    • Don't pull the cable too hard or it can damage the connection.

  16. bXwlQsm4ZANLqEfx
    bXwlQsm4ZANLqEfx
    jIUTWdH2RG4KHax4
    p2nUxkKlLRJjJc6N

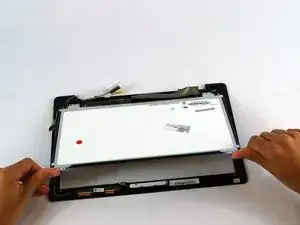

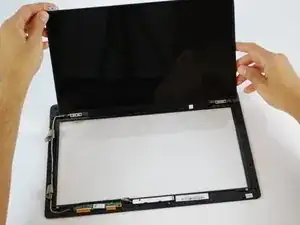

    • Take the screen off of the screen holder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
