Asus Vivobook Q301LA-BHI5T02 USB Port Plate Replacement

Geschrieben von: Kevin Kochanek
  • Kommentare: 1
Asus Vivobook Q301LA-BHI5T02 USB Port Plate Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

This guide will show the reader how to replace their failing USB Port Plate with a new one. If devices plugged into the USB ports aren't connecting properly, the plate may need to be replaced.

  1. 1l4YeTZhEwxmZZWe

    • Make sure the computer is turned off.

    • Flip the device over so that the back cover is facing you.

  2. lJG4TWMhysBQOLKW
    lJG4TWMhysBQOLKW
    3c36cGUlNbhQuocn

    • Remove the four 5mm Phillips #1 screws from the top of the laptop.

    • Remove the two 6mm Phillips #1 screws from the sides of the laptop.

    • Remove the four 2mm Phillips #1 screws from the bottom of the laptop.

  3. wojWGOaBqHDAEjtu
    wojWGOaBqHDAEjtu
    Z6uUvsON3wXA6r6N
    VcZPpsBmlHwrXgvK

    • Use a plastic opening tool to gently pry the bottom of the laptop up. Slowly slide it along the edges, twisting it every so often to pop the bottom of the laptop out of the clips holding it in place.

    Its not phisically possible if i will try harder the laptop will break in half

    Disturbed Asylum -

  4. phSl31F1akP5eaeN

    • Lift off the cover and remove the back cover from the device.

  5. ViRyCaCHuErgTTNc

    • Slide the hard drive out of the SATA port and remove it from the device.

  6. 3MQJajOwYLelCXra

    • Remove the two 5.0 mm Phillips #1 screws shown.

    • Remove the two 3.0 mm Phillips #1 screws shown.

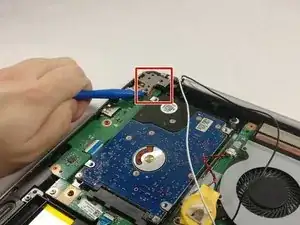

  7. WTg3steY3VyxPoYi

    • Using a plastic opening tool, pry open the hinge shown until your fingers can fit under it.

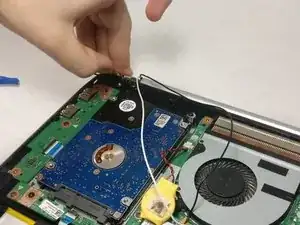

  8. AyKaHZhZeOSKWNNW

    • Pull the hinge the rest of the way up.

  9. Gn2lLAcuU1Zqifxa

    • Disconnect the plate from the shown connector. The USB port plate is now disconnected from your device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
