    • Remove the battery, then unscrew the 7 3 mm Phillips screws behind the battery. Make sure they go in separate, organized piles.

    • Unscrew the 2 4 mm Phillips head screws by the battery.

  2. hZXL1lyd5d4XFhMR
    • Remove the panel above the keyboard with a plastic spudger.

  3. drjKX1pFbqYtLJ6Q
    • Once the panel is removed, use the spudger to pry out the keyboard.

    • Do not fully remove, for the keyboard is still attached to the ribbon cable.

  4. t5n2tsEQrQL35GWV
    t5n2tsEQrQL35GWV
    X4uVGFUy5fdQoTuY
    • Detach the ribbon cable from the keyboard by pulling the end of the ribbon cable that is attached inside of the laptop.

    • Be sure to detach from the root rather than from near the middle. It should slide out with ease.

    • Now you can fully remove the keyboard from the laptop.

  5. ka6EGEZ2MHrIXUHb
    • Place your fingers or a spudger between the front panel and the rest of the laptop.

    • Pull upwards gently to detach the side you are grabbing.

    • Repeat on the other side until the panel easily peels off the laptop.

  6. jHpyDeLxWHbAjyi2
    jHpyDeLxWHbAjyi2
    dhFlu4PGWbb3jg3r
    • The touchpad should be loosely attached to the rest of the laptop by a ribbon cable.

  7. EeAJYRPapolRYFMI
    • Gently pull the ribbon cable out of its socket attached to the touchpad.

    • You are now able to remove the touchpad.

  8. XK3J2OMrUG2bopep
    • Unscrew the 3 13 mm Phillips screws on the surface of the panel.

    • Unscrew the 4 mm Phillips screw beneath the panel.

  9. JsUIIsfyVrOHwY13
    JsUIIsfyVrOHwY13
    sxZmuk5obydCWbGK
    ov6lTiXV2CgWuvRL
    • There are many different types of screws in this step so make sure to arrange the screws by their different sizes.

    • Unscrew the six 17 mm Phillips head screws on the stands on the back and the 2 "A" screws of the same size adjacent to the stands.

    • Unscrew the two C Phillips head screws on the hard drive panel. There is also one more C screw in the upper right corner of the laptop as shown.

    • Unscrew the eight 8mm lock phillips screws and the screws along the outside of the laptop.

    • Unscrew the three 3mm E Phillips screw and the one 3mm D Phillips screw.

    • Unscrew the 5mm Phillips head screw that lies just above the D screw.

  10. UHQ5ALCaYfXtMwZS
    • Unscrew the two 8 mm Phillips screws beneath the hard drive panel.

    • After finishing this step, flip the laptop over.

  11. lWeKC2rEKihGCYm5
    • Everything should now be loose enough for you to start removing the panel.

    • Do not fully remove the panel, for there are still ribbons attached on the inside.

  12. xAmfyqRBiOXVKAHI
    • Carefully remove the ribbons from the base.

    • Then you can lift the panel to access the components beneath.

  13. cJDNIuDTaNntdO4a
    cJDNIuDTaNntdO4a
    Rjkc5oWebGfkJlOs

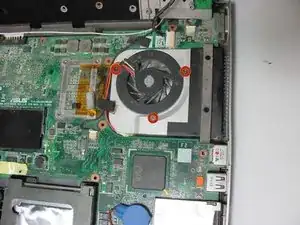

    • Remove the 3 4 mm Phillips head screws holding down the fan on inside of the laptop.

  14. DdYVwgx6kYiwgJOR

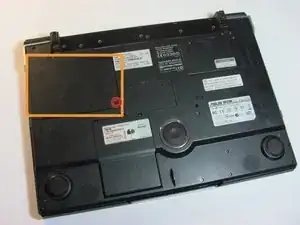

    • Remove the 4 mm Phillips head screw holding the left panel on the back of the laptop.

    • Slide off the left panel by pulling to the left.

  15. E4TBUbkDkMtUUZGQ
    E4TBUbkDkMtUUZGQ
    XhdQCLyEVMLxIFuq

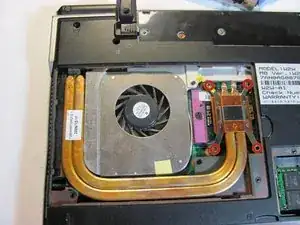

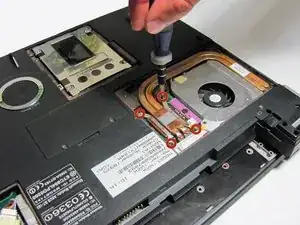

    • Remove the 4 4 mm Phillips screws on the orange cooling system.

  16. lPMCFl1VxSRXbOZ6

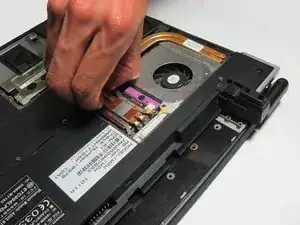

    • Gently lift the orange cooling system upward to remove it from the laptop.

  17. 3I1pIIvL4eb66Sq4
    3I1pIIvL4eb66Sq4
    kPGUmcUFCXuvDVB3

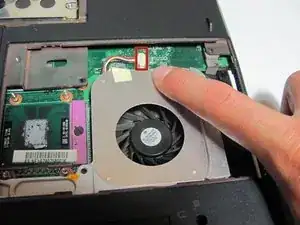

    • Disconnect the cable from its socket by pulling up on it gently. It will be revealed beneath the previously removed cooling system.

  18. CZxCpjjwDNwElGVg
    CZxCpjjwDNwElGVg
    tc45owE3HFWKcZan

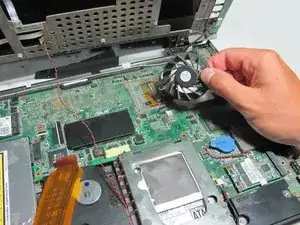

    • From the front of the laptop, remove the tape holding down the fan's cable.

    • Gently push down on the protective area around the fan as shown to pull the cable through the gap created.

    • Lift the fan out of the laptop.
