Asus W2W-A1 Hard Drive Replacement

Geschrieben von: Nolan Schock
  • Kommentare: 0
Asus W2W-A1 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Replace a broken hard drive or upgrade your hard drive to increase your storage space.

  1. aSbjbPLdFD1DfxAY

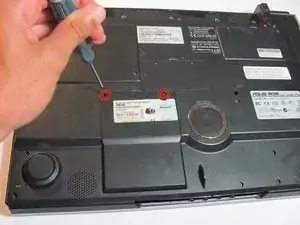

    • Before disassembly, make sure the laptop is powered off and the battery is disconnected.

    • Remove the two screws (size?) on the lower panel at the bottom of the laptop (identify tool to use).

  2. gCwyaNiVtSHVLNRo

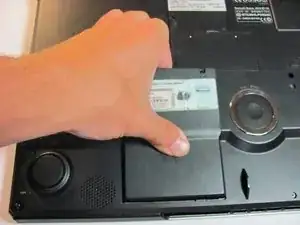

    • Grab the panel and lift upwards while pulling towards yourself.

  3. MLEcDEgVRWSGiCSG

    • Remove the 3 4 mm Phillips upper screws holding the hard drive down.

  4. WmaBILU32PQaXSRZ

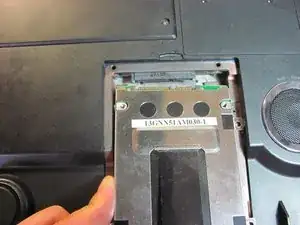

    • Pull the hard drive towards yourself to disconnect it from the laptop.

  5. xIaHk3iaUuXDwVKE

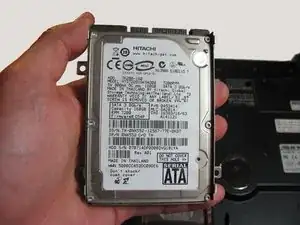

    • Lift the hard drive upwards to remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
