Asus W2W-A1 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. mCvDEGwFJRx5RdRb
    mCvDEGwFJRx5RdRb
    32pDrBZpwZnTxgWN
    IuthjmuKNV61CtRw

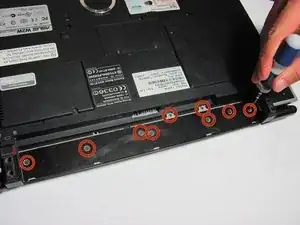

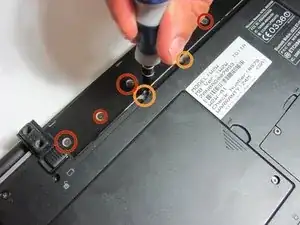

    • Remove the battery, then unscrew the 7 3 mm Phillips screws behind the battery. Make sure they go in separate, organized piles.

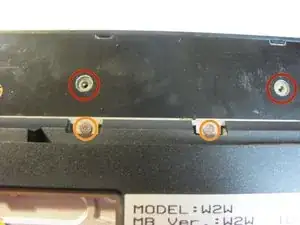

    • Unscrew the 2 4 mm Phillips head screws by the battery.

  2. hZXL1lyd5d4XFhMR

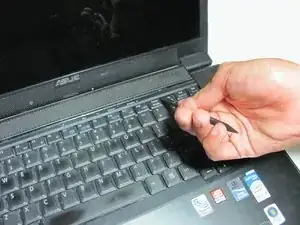

    • Remove the panel above the keyboard with a plastic spudger.

  3. drjKX1pFbqYtLJ6Q

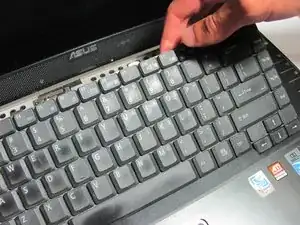

    • Once the panel is removed, use the spudger to pry out the keyboard.

    • Do not fully remove, for the keyboard is still attached to the ribbon cable.

  4. t5n2tsEQrQL35GWV
    t5n2tsEQrQL35GWV
    X4uVGFUy5fdQoTuY

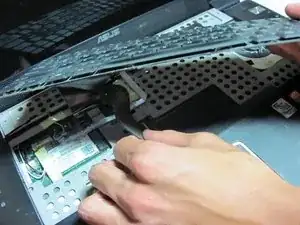

    • Detach the ribbon cable from the keyboard by pulling the end of the ribbon cable that is attached inside of the laptop.

    • Be sure to detach from the root rather than from near the middle. It should slide out with ease.

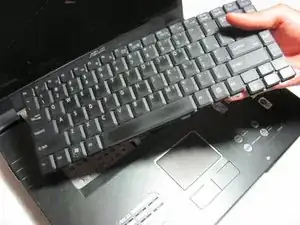

    • Now you can fully remove the keyboard from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
