Einleitung

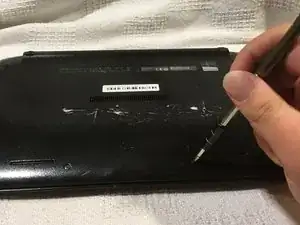

  1. DivymBLWTbHEreNm
    • Using the Phillips 1 screwdriver, remove the laptop's back panel.

    • The parts you see underneath that panel are called the laptop's "internals".

  2. rcvERdhGUdNYiBK6
    • Now, locate the audio board. This model has an L-shaped board. It can be found in the far left region of the internals.

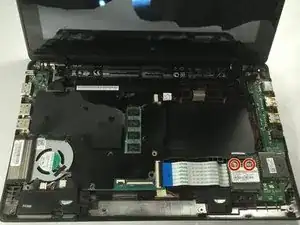

  3. Xb1sU4ScmoCCucLn
    • Firstly, disconnect the two tiny wires that connect the audio board to other components. They can be found on a black square near the green decoder strip. Remember to be gentle with these delicate components.

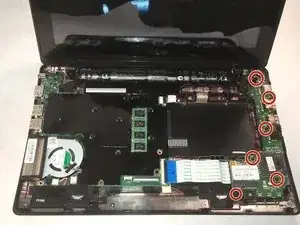

  4. P4vYWh62iyYp2cic
    P4vYWh62iyYp2cic

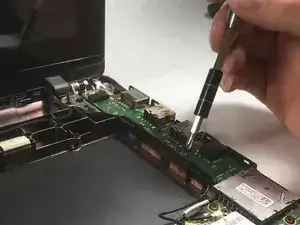

    LbMBLk6bwDYWkmcl
    • Using the Phillips 1 screwdriver, remove the six screws that hold the audio board in place.

    • Hint: the sixth screw may not be readily visible. It can be found in the bottom left corner of the audio board, under a small black flap.

    • With the screws removed, the audio board can be easily lifted out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
