Einleitung
Werkzeuge
-
-

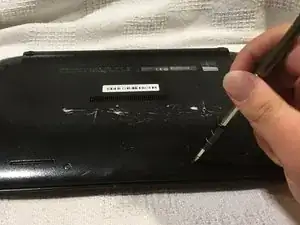

Using the Phillips 1 screwdriver, remove the laptop's back panel.
-
Pry open the Keyboard/Touch pad.
-
Use a plastic or metal spudger to separate the keyboard from the back panel and lift the keyboard out of place.
-
-
-

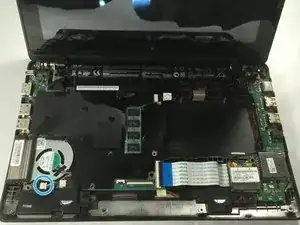

Detach keyboard and touch screen cables
-
These are the cable that are holding the keyboard and touch screen together
-
-
-
Remove the following four screws: Four 4 mm Phillips #0 using a phillips screwdriver.
-
Slide out the hard drive
-
-
-

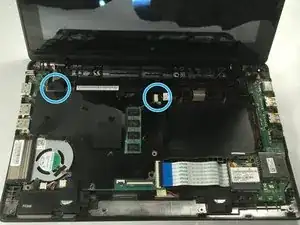

Remove motherboard screws
-
These would be located on the green panel which is the motherboard
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
