Asus X200MA Hard Drive Replacement

Geschrieben von: Vanessa Garcia
  • Kommentare: 7
Asus X200MA Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

  1. Gek536a33gkvmCZf

    • Remove the following six screws:

    • Six 4 mm screws using a Phillips #0 screwdriver.

    • Remove the following one screw:

    • One 14 mm screw using a Phillips #0 screwdriver.

    • The 14mm screw goes in the center.

    There are also two other screws under the rubber feet above the battery.

    digg1024 -

    I agree. Two another 14 mm screws under the rubber feet.

    shao.onii -

  2. jmau2wwOGEb1qGxD

    • Use a plastic or metal spudger to separate the keyboard from the back panel and lift the keyboard out of place.

    How exactly does the keyboard pod out ? It doesn’t come off at the screen hinge.

    Clément Marshall -

  3. wLaiO1DLfBNjdFQ4

    • Remove the black foam and adhesive located on top of the hard drive.

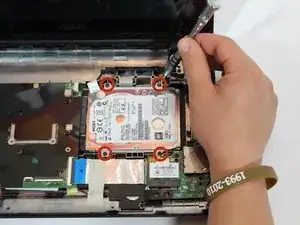

  4. wsLPTEZeKuccksfl

    • Remove the following four screws:

    • Four 4 mm Phillips #0 using a phillips screwdriver.

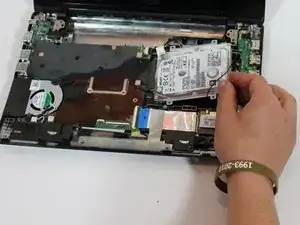

  5. MpnydyMO2jYFxGUW

    • Slide out the hard drive

    Slide the drive to the right, away from the sata connectors at the left.

    Clément Marshall -

    There are also screws under the rubber feet on the battery well.

    retail -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Vanessa Garcia

Mitglied seit: 22/01/15

1763 Reputation

2 Kommentare

You FORGOT TO MENTION that one must remove the 2 Rubber feet to get at 2 more screws :-(((((((

Matthew Miller -

Very poor!!! If you follow this instruction, you will destroy your Laptop. I did nearly destroying it. You did not show the 2 screws under the rubbers.

Minus 1000 points!!!

luft_ha -
