Asus X200MA Speaker Replacement

Geschrieben von: Alli Krininger
  • Kommentare: 3
Asus X200MA Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide provides step-by-step instructions on the replacement of the speaker of ASUS X200MA. This guide can be used to replace broken speakers or upgrade on this laptop. Use caution when removing the wires and removing the glued speakers with a spudger, as these are delicate processes.

  1. Gek536a33gkvmCZf

    • Remove the following six screws:

    • Six 4 mm screws using a Phillips #0 screwdriver.

    • Remove the following one screw:

    • One 14 mm screw using a Phillips #0 screwdriver.

    • The 14mm screw goes in the center.

    There are also two other screws under the rubber feet above the battery.

    digg1024 -

    I agree. Two another 14 mm screws under the rubber feet.

    shao.onii -

  2. jmau2wwOGEb1qGxD

    • Use a plastic or metal spudger to separate the keyboard from the back panel and lift the keyboard out of place.

    How exactly does the keyboard pod out ? It doesn’t come off at the screen hinge.

    Clément Marshall -

  3. 3GQyiHvVKvDNywYx

    • Disconnect the gold cap that connects to a black wire using the metal spudger.

  4. PTUouLDYGw3wpelf

    • Remove the plastic component from the clip by gently pulling it back.

  5. LDlcKP4SkEBmDT4C
    LDlcKP4SkEBmDT4C
    WDZLyOnOq6MgG1IP

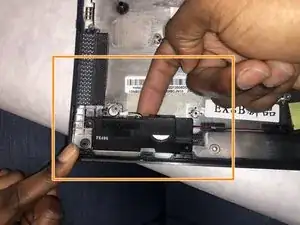

    • Use the tweezers to free the speaker from the plastic clips.

    • Use a finger to lift the speaker and break the bond between the adhesive on the base plate and the speaker.

  6. VDBXCU436VfOOKTZ
    VDBXCU436VfOOKTZ
    xJZOcUGrKl5vDdFU
    VYGCONKKROO2nJ2k

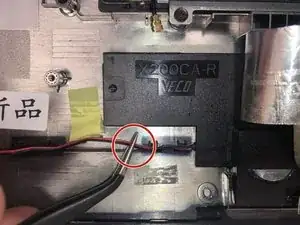

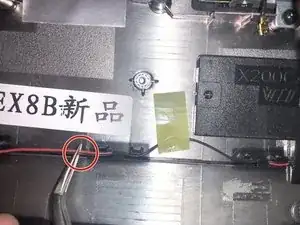

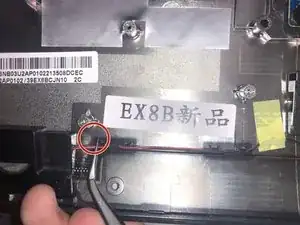

    • Use the tweezers to carefully lift the wires from the plastic clips.

  7. Ur4cwHR1TcXTVHtr
    Ur4cwHR1TcXTVHtr
    edBIXB1mMRQT1QsR

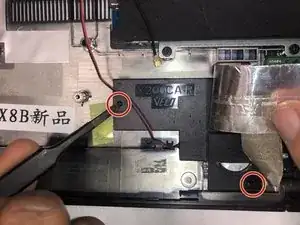

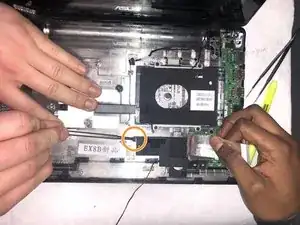

    • Use the metal tweezers to free the speaker from the plastic clips.

    • Use the metal spudger to break the bond between the base plate adhesive and the speaker.

    • Lift the speakers and remove them from the base plate.

Abschluss

To reassemble your device, follow these instructions in reverse [#|order].
