Asus X200MA Trackpad Replacement

Geschrieben von: Vanessa Garcia
  • Kommentare: 3
Asus X200MA Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace the trackpad on your Asus X200MA.

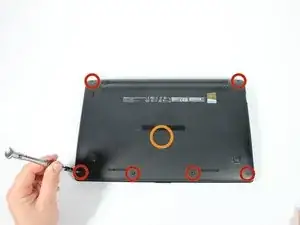

  1. Gek536a33gkvmCZf

    • Remove the following six screws:

    • Six 4 mm screws using a Phillips #0 screwdriver.

    • Remove the following one screw:

    • One 14 mm screw using a Phillips #0 screwdriver.

    • The 14mm screw goes in the center.

    There are also two other screws under the rubber feet above the battery.

    digg1024 -

    I agree. Two another 14 mm screws under the rubber feet.

    shao.onii -

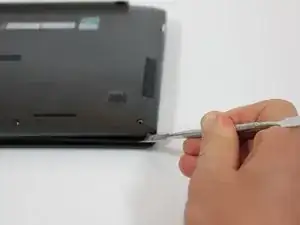

  2. jmau2wwOGEb1qGxD

    • Use a plastic or metal spudger to separate the keyboard from the back panel and lift the keyboard out of place.

    How exactly does the keyboard pod out ? It doesn’t come off at the screen hinge.

    Clément Marshall -

  3. mvD4WKcDeuXjaUfh
    mvD4WKcDeuXjaUfh
    TqC1YURqPoNKr6Bj

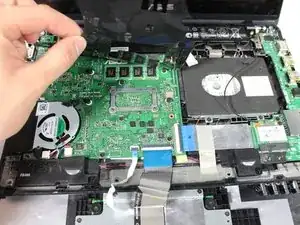

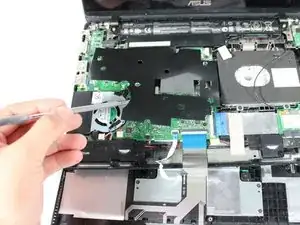

    • Use the spudger to lift up and remove the black plastic covering.

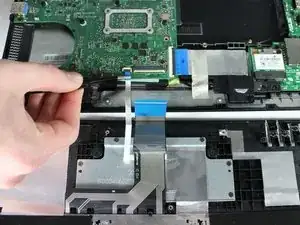

  4. QtvlVWSVLQynXOoJ

    • Remove thinner white strip by first flipping up black piece at the top of the strip with the tweezers and then pulling it out.

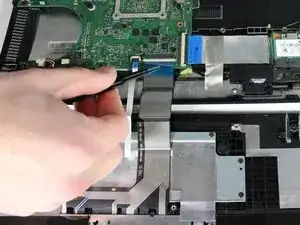

  5. CXhFsFSNyT6SLPKr

    • Remove wider blue strip with tweezers.

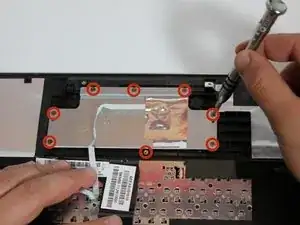

  6. bEGjPqVAlXjMSfue

    • Remove the following eight screws:

    • Eight 3 mm screws using Phillips #0 screwdriver.

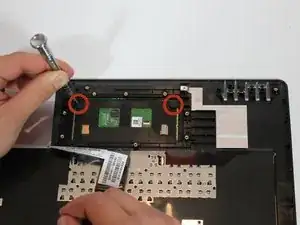

  7. aGg6OQnb4d6ZOkKF

    • Remove the following two screws after lifting metal plate off:

    • Two 2 mmm screws using a Phillips #0 screwdriver.

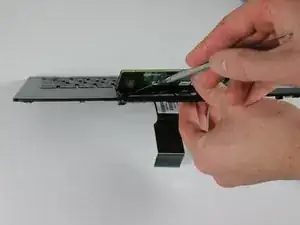

  8. DUjMpDjH4DMKVICw
    DUjMpDjH4DMKVICw
    ORscOEJQinrsIUQC

    • Use metal spudger to get in between mouse pad and keyboard and lift off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
