Einleitung
If your AsusX202E does not turn on or looses power quickly use this guide to replace the battery.
Werkzeuge
Ersatzteile
-
-
Remove the 9 1.2mm phillips head screws on the bottom of the computer using a small Phillips head screw driver.
-
-
-

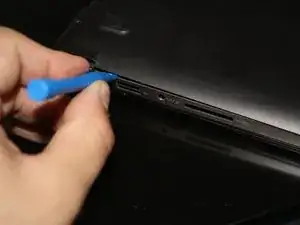

Use a plastic opening tool to open the components of the laptop. In order to do this, insert the plastic opening tool in between the two covers then pry open.
-
-
-

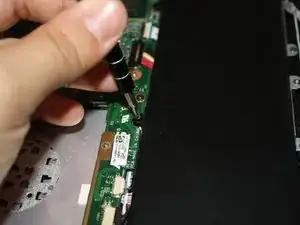

Once the back is off the device, unscrew the 7 1.2mm phillips head screws that hold the battery in place using a small phillips head screw driver
-
-
-

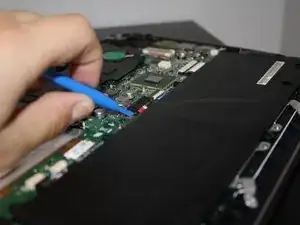

Once the screws holding the battery are out, use the plastic opening tool to disconnect the battery cable ribbon from the motherboard
-
Abschluss
To reassemble your device, follow these steps in reverse order.
