Einleitung
This guide will show you how to replace the two speakers in your device.
Werkzeuge
-
-
Remove the 9 1.2mm phillips head screws off the back of the computer by using a small phillips head screw driver.
-
Start by disconnecting the battery cable/ribbon.
-
-
-

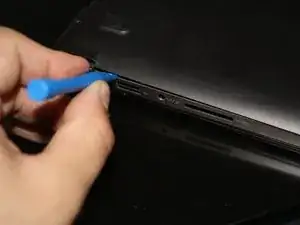

Use a plastic opening tool to open the components of the laptop. In order to do this, insert the plastic opening tool in between the two covers then pry open.
-
-
-
Once the back is off the device, locate the speakers. Remove the 7 1.2mm phillips head screws holding battery in place. Use a small phillips head screw driver.
-
Disconnect the battery ribbon and remove the battery.
-
-
-

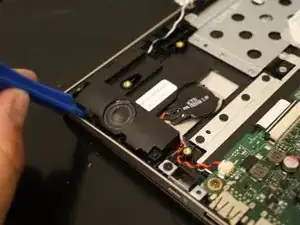

Use a long plastic pry tool to remove the speaker from the computer. Note: There is strong adhesive holding the speaker down.
-
-
-

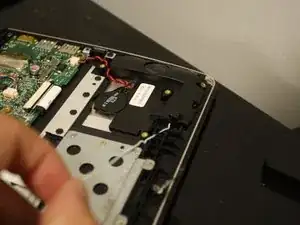

Lift current speaker up and follow the wire to the remaining speaker.
-
Repeat previous step to remove second speaker from adhesive.
-
To reassemble your device, follow these instructions in reverse order.
