This guide will demonstrate how to successfully replace the hinges in the Asus X501A-RH31 laptop. Please note there are small pieces of the motherboard connected to the hinges so execute caution when removing the hinges.

  1. wPEfKqfFSUOgOkHq
    • Turn the laptop over so that the back is facing upwards.

  2. vJi4jrTKrlmqeAIK
    • To unlock the left tab, make sure the tab on the left has red showing.

  3. ATs3RVWUIFKHAYMn
    ATs3RVWUIFKHAYMn
    ImBNC5atBQZvvDMW
    • To unlock the right tab, push the right slider to the left with one hand.

    • Push the battery out with the other hand.

  4. xVKijBunHD5jSJD4
    • Using the Phillips #00 screwdriver unscrew all nine screws from the bottom of the laptop.

    • The nine screws are 7 mm long, 4.5 mm in diameter.

  5. l1isQNALnvQOZAQ3
    • Turn the laptop over and open the top so the keyboard is facing you.

  6. XRTrDEapxGdLTBKW
    XRTrDEapxGdLTBKW
    QF5blpKo16hKIkdJ
    • Pry off the keyboard cover on the edge using the plastic opening tool.

    • Start from one side. Once it is lose, carry out the same procedure on the front and other side.

    • Only do little sections at a time as the keyboard may break if you attempt to take the whole thing off from a single point.

  7. KiMuX25tena6fA1B
    • Slowly lift the keyboard upward, but do not remove completely.

    • Remove the two data cables that attach the keyboard to the motherboard.

  8. PbMaWSaaDnkDabv1
    • Use tweezers to pull the white plastic piece up that is attached to the data cable.

    • Repeat this process for the big black cable as well.

    • Use caution when unlatching the data cables from the motherboard. The cables are extremely delicate and can break.

  9. 4k1r6XaCUkFMn6tq

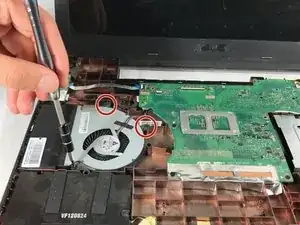

    • Unscrew the three screws using the Phillips #00 screwdriver.

    • The three screws are 5 mm in length, 4.2 mm in diameter.

  10. DfMxKWXTQFrMPBUY

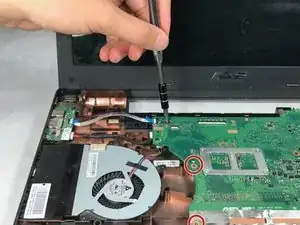

    • Unscrew the three screws on the left hand side of the big motherboard.

    • This will loosen the motherboard, which will allow for better access to the cables in the next step.

    • The three screws are 5 mm in length, 4.2 mm in diameter and Phillips head screws.

  11. V22IN25rk5GCgNEi
    V22IN25rk5GCgNEi
    tOuuDXZuX1TONFbi
    EfAjMGqeEBLYWHbo

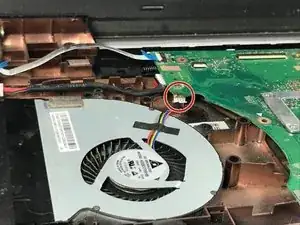

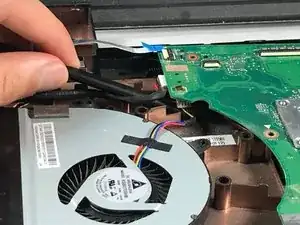

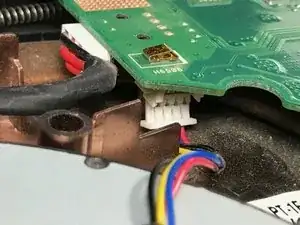

    • Remove the connector cable attached to the bottom of the motherboard.

    • Take the black plastic spudger and press down on the lower half of the white plastic piece to remove the connector cable.

  12. QQqAC4LZxUqTfWRf
    QQqAC4LZxUqTfWRf
    OWYKs5efPfOhAKcq

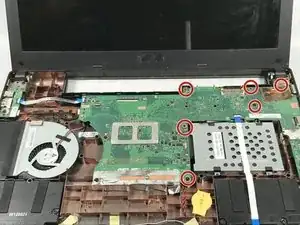

    • Unscrew the six screws that hold the motherboard to the bottom of the laptop using a Phillips #00 screwdriver.

    • The six screws are 4.2 mm long, 5 mm in diameter.

  13. P3ltEKX3oFRYSWxE
    P3ltEKX3oFRYSWxE
    yxoYOZ25GNRxpOma

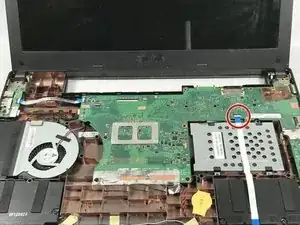

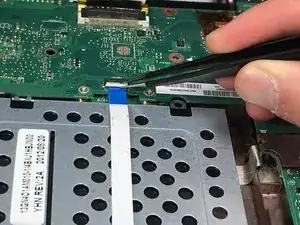

    • Unlatch the data cable by using tweezers to lift the white tab and release the cable.

  14. WC1INHCp3fXuRoH1
    WC1INHCp3fXuRoH1
    WuDEhWaOX6MXcBHw

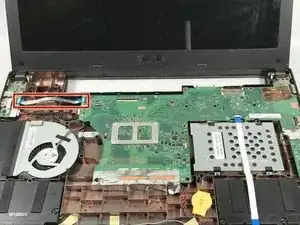

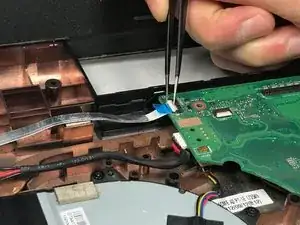

    • Remove the cable on the left side of the motherboard.

    • Use tweezers to pull the white tab up in order to release this cable.

  15. 2la1oXRFCRLoKXmW

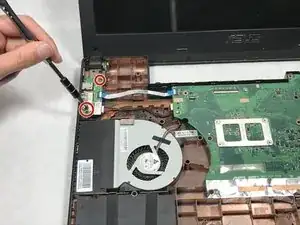

    • On the left side is a small piece of the motherboard. Unscrew the two screws holding this piece down with the Phillips #00 screwdriver.

    • The two screws are 6 mm long, 4.2 mm in diameter.

  16. PRekCAtth3h2XDGP
    PRekCAtth3h2XDGP
    5pJCR4WWQtPUkLGN
    61fLqh2UWgBfBYPQ

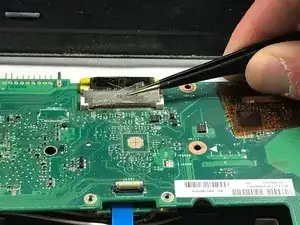

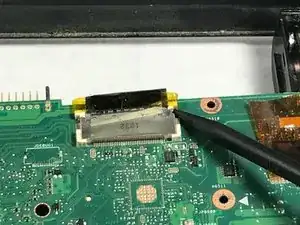

    • Release the connector cable on the back right side of the motherboard.

    • Peel off the tape with tweezers so that the cable can be released.

    • Using the black plastic spudger, push the back half of the cable towards the screen.

  17. MK4dbWNYcpDCQtpR
    MK4dbWNYcpDCQtpR
    K3q3ZqNSqAZ1tWoR

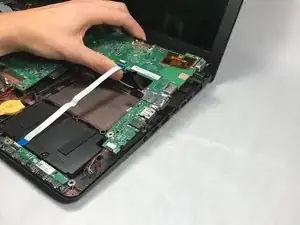

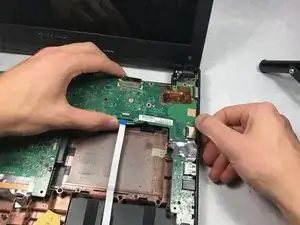

    • Grip the motherboard firmly and pull the board leftward and upwards so that the ports on the right side escape their frames.

  18. VFsAPZmr2jfPELf1
    VFsAPZmr2jfPELf1
    qhMbFNrauSJ1Tty6

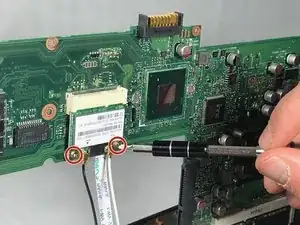

    • On the back of the motherboard there are two screws that attach the LCD connector to the motherboard.

    • Unscrew the two screws using the Phillips #00 screwdriver.

    • These screws are 3 mm in length, 3.5 mm in diameter.

    • Pull the connector downwards and out.

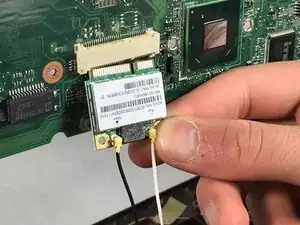

    The LCD connector does not require screws; the pictured component is the wifi card

    Tristan Cunningham -

  19. fKlOrgWDEPPALYJK

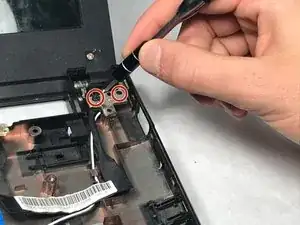

    • To detach the hinges, use the Phillips #00 screwdriver to unscrew the two top screws on both the left and right hinges.

    • The four screws are all the same. They are 6.2 mm in length, 4 mm in diameter.

  20. kbVGfYJSIDlDxbYN

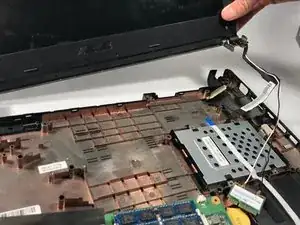

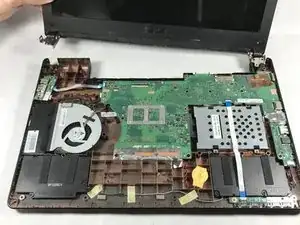

    • Once both sides of the laptop are unscrewed, gently pull the upper half of the laptop off of the bottom half.

  21. 5CEKnqtP1ZVqAgp2
    5CEKnqtP1ZVqAgp2
    N5LKjdYfPcibPenZ

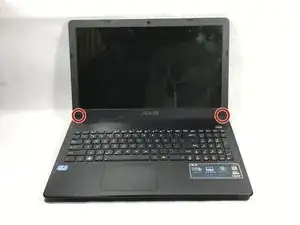

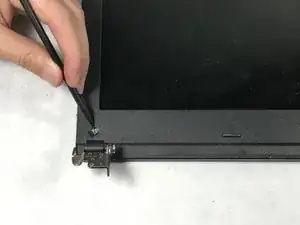

    • Use the black plastic spudger to pry off the black squares on the bottom of the laptop screen, this reveals two screws.

    • Take caution when removing these squares as they will bend and crease.

  22. rbsHROjUqDZT1VPX

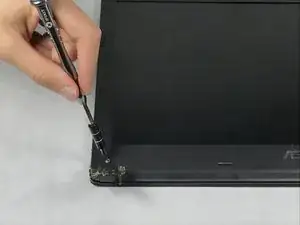

    • Use the Phillips #00 screwdriver to unscrew the two screws at the bottom of the laptop screen.

    • The two screws are 6 mm long, 4mm in diameter.

  23. sJZERMEFtbNZJ2F6

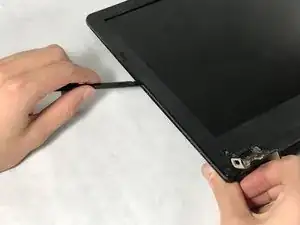

    • Place the black plastic spudger between the top cover of the screen and the bottom of the laptop frame that rests on the table.

    • Push down on the black plastic spudger to pry the top cover off the screen of the laptop.

    • The screen is fragile and too much pressure applied will damage the screen.

  24. sEsYtjhmmXAcmHH6

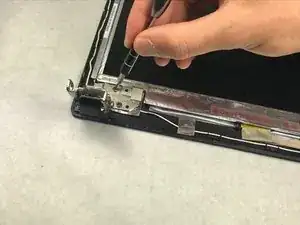

    • At the bottom of the screen there are two screws on each hinge.

    • Unscrew the four screws using the Phillips #00 screwdriver.

    • The four screws are 3.5 mm long, 4.5 mm in diameter.

  25. dNx5XRiNNPUNULNZ
    dNx5XRiNNPUNULNZ
    gRiwfyJ3WPJnLowN

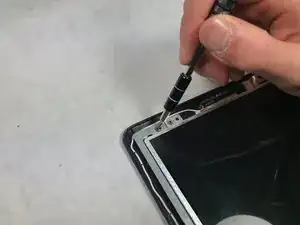

    • At the top of the screen there are two screws on the left side and two screws on the right side of the laptop.

    • Using the Phillips head #00 screwdriver, unscrew the inside screw and then the outside screw.

    • All four screws are the same size. They are 4 mm in length, 4.2 mm in diameter.

Abschluss

To reassemble your device, follow these instructions in reverse order.
