Asus X501A-RH31 LCD Replacement

Geschrieben von: Romana Hruby
  • Kommentare: 2
Asus X501A-RH31 LCD Replacement

Schwierigkeitsgrad

Difficult

Schritte

26

Zeitaufwand

45 Minuten

Einleitung

The purpose of this guide is to show how to effectively remove the LCD. Please note that the screen is fragile and too much pressure applied will damage the screen.

  1. wPEfKqfFSUOgOkHq

    • Turn the laptop over so that the back is facing upwards.

  2. vJi4jrTKrlmqeAIK

    • To unlock the left tab, make sure the tab on the left has red showing.

  3. ATs3RVWUIFKHAYMn
    ATs3RVWUIFKHAYMn
    ImBNC5atBQZvvDMW

    • To unlock the right tab, push the right slider to the left with one hand.

    • Push the battery out with the other hand.

  4. xVKijBunHD5jSJD4

    • Using the Phillips #00 screwdriver unscrew all nine screws from the bottom of the laptop.

    • The nine screws are 7 mm long, 4.5 mm in diameter.

  5. l1isQNALnvQOZAQ3

    • Turn the laptop over and open the top so the keyboard is facing you.

  6. XRTrDEapxGdLTBKW
    XRTrDEapxGdLTBKW
    QF5blpKo16hKIkdJ

    • Pry off the keyboard cover on the edge using the plastic opening tool.

    • Start from one side. Once it is lose, carry out the same procedure on the front and other side.

    • Only do little sections at a time as the keyboard may break if you attempt to take the whole thing off from a single point.

  7. KiMuX25tena6fA1B

    • Slowly lift the keyboard upward, but do not remove completely.

    • Remove the two data cables that attach the keyboard to the motherboard.

  8. PbMaWSaaDnkDabv1

    • Use tweezers to pull the white plastic piece up that is attached to the data cable.

    • Repeat this process for the big black cable as well.

    • Use caution when unlatching the data cables from the motherboard. The cables are extremely delicate and can break.

  9. 4k1r6XaCUkFMn6tq

    • Unscrew the three screws using the Phillips #00 screwdriver.

    • The three screws are 5 mm in length, 4.2 mm in diameter.

  10. DfMxKWXTQFrMPBUY

    • Unscrew the three screws on the left hand side of the big motherboard.

    • This will loosen the motherboard, which will allow for better access to the cables in the next step.

    • The three screws are 5 mm in length, 4.2 mm in diameter and Phillips head screws.

  11. V22IN25rk5GCgNEi
    V22IN25rk5GCgNEi
    tOuuDXZuX1TONFbi
    EfAjMGqeEBLYWHbo

    • Remove the connector cable attached to the bottom of the motherboard.

    • Take the black plastic spudger and press down on the lower half of the white plastic piece to remove the connector cable.

  12. QQqAC4LZxUqTfWRf
    QQqAC4LZxUqTfWRf
    OWYKs5efPfOhAKcq

    • Unscrew the six screws that hold the motherboard to the bottom of the laptop using a Phillips #00 screwdriver.

    • The six screws are 4.2 mm long, 5 mm in diameter.

  13. P3ltEKX3oFRYSWxE
    P3ltEKX3oFRYSWxE
    yxoYOZ25GNRxpOma

    • Unlatch the data cable by using tweezers to lift the white tab and release the cable.

  14. WC1INHCp3fXuRoH1
    WC1INHCp3fXuRoH1
    WuDEhWaOX6MXcBHw

    • Remove the cable on the left side of the motherboard.

    • Use tweezers to pull the white tab up in order to release this cable.

  15. 2la1oXRFCRLoKXmW

    • On the left side is a small piece of the motherboard. Unscrew the two screws holding this piece down with the Phillips #00 screwdriver.

    • The two screws are 6 mm long, 4.2 mm in diameter.

  16. PRekCAtth3h2XDGP
    PRekCAtth3h2XDGP
    5pJCR4WWQtPUkLGN
    61fLqh2UWgBfBYPQ

    • Release the connector cable on the back right side of the motherboard.

    • Peel off the tape with tweezers so that the cable can be released.

    • Using the black plastic spudger, push the back half of the cable towards the screen.

  17. MK4dbWNYcpDCQtpR
    MK4dbWNYcpDCQtpR
    K3q3ZqNSqAZ1tWoR

    • Grip the motherboard firmly and pull the board leftward and upwards so that the ports on the right side escape their frames.

  18. VFsAPZmr2jfPELf1
    VFsAPZmr2jfPELf1
    qhMbFNrauSJ1Tty6

    • On the back of the motherboard there are two screws that attach the LCD connector to the motherboard.

    • Unscrew the two screws using the Phillips #00 screwdriver.

    • These screws are 3 mm in length, 3.5 mm in diameter.

    • Pull the connector downwards and out.

    The LCD connector does not require screws; the pictured component is the wifi card

    Tristan Cunningham -

  19. fKlOrgWDEPPALYJK

    • To detach the hinges, use the Phillips #00 screwdriver to unscrew the two top screws on both the left and right hinges.

    • The four screws are all the same. They are 6.2 mm in length, 4 mm in diameter.

  20. kbVGfYJSIDlDxbYN

    • Once both sides of the laptop are unscrewed, gently pull the upper half of the laptop off of the bottom half.

  21. 5CEKnqtP1ZVqAgp2
    5CEKnqtP1ZVqAgp2
    N5LKjdYfPcibPenZ

    • Use the black plastic spudger to pry off the black squares on the bottom of the laptop screen, this reveals two screws.

    • Take caution when removing these squares as they will bend and crease.

  22. rbsHROjUqDZT1VPX

    • Use the Phillips #00 screwdriver to unscrew the two screws at the bottom of the laptop screen.

    • The two screws are 6 mm long, 4mm in diameter.

  23. sJZERMEFtbNZJ2F6

    • Place the black plastic spudger between the top cover of the screen and the bottom of the laptop frame that rests on the table.

    • Push down on the black plastic spudger to pry the top cover off the screen of the laptop.

    • The screen is fragile and too much pressure applied will damage the screen.

  24. sEsYtjhmmXAcmHH6

    • At the bottom of the screen there are two screws on each hinge.

    • Unscrew the four screws using the Phillips #00 screwdriver.

    • The four screws are 3.5 mm long, 4.5 mm in diameter.

  25. dNx5XRiNNPUNULNZ
    dNx5XRiNNPUNULNZ
    gRiwfyJ3WPJnLowN

    • At the top of the screen there are two screws on the left side and two screws on the right side of the laptop.

    • Using the Phillips head #00 screwdriver, unscrew the inside screw and then the outside screw.

    • All four screws are the same size. They are 4 mm in length, 4.2 mm in diameter.

  26. gbmTyRlChJTmsDJl

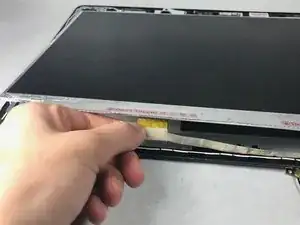

    • Lift the screen up off the back panel enough to have access to the LCD cable connector, but not all the way.

    • Pull the cable gently down and out of the connector to disconnect it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
