Asus X502C-RB01 Fan Replacement

Geschrieben von: Frances Tan
  • Kommentare: 2
Asus X502C-RB01 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

15 Minuten

Einleitung

If your laptop fan gets clogged with too much dust or is spinning too loud, you might want to clean or replace it. This guide will show you how to get to the fan and remove it to do so.

  1. y4Oxu43VUmPbJxNB

    • Turn off the laptop and flip it face down.

    • Using a Phillips #0 screwdriver, remove the seven 9mm screws circled in red.

    • With the same screwdriver, remove the four 5mm screws circled in orange.

  2. WxLZpR5eKQnnyhFq

    • Flip the laptop face up and open the lid.

    • Use the plastic opening tool to pry around the entire edge of the keyboard panel to loosen the panel from the base.

    • Be careful not to lift the panel just yet, as it is still connected to the motherboard.

  3. wJZDMM225jxAmlTg
    wJZDMM225jxAmlTg
    PYGdd2nRT25y2bvx

    • Partially lift the panel up, revealing the two cables connected to the motherboard.

  4. Tts6KmoQeFqbQDvA
    Tts6KmoQeFqbQDvA
    gmGPHSg4wnF2ptIv

    • Disconnect the first ZIF cable by lifting the tab using the spuger tool or your fingernail and gently pull the cable out.

    • Disconnect the second ZIF cable by lifting the tab using your fingernail and gently pull the cable out. This one is more difficult to reach with the spudger.

  5. x3yUNJRtfc6GSvD3

    • Remove the keyboard panel completely and set it aside. The internal components of the laptop are now exposed.

  6. HbhODREkJPZ33OnX

    • Locate the hard drive in the area highlighted in red.

    • This demonstration model does not have a mounting bracket around the hard drive.

  7. OhtXpDSWMHCUZtUt

    • Remove the four 5mm screws from the hard drive mounting bracket using the Phillips #0 screwdriver.

  8. dTnF2ZxQE5QvdpXY

    • Slide the hard drive in the direction away from the connector and lift it up to remove it.

  9. WvXH6FpdupCrDPgY

    • Unplug the battery from the laptop by lifting the connector up with the flat end of the spudger.

    • Unplug the two ZIF cables by lifting the tab using the spudger tool or your fingernail then pulling the cable out gently.

  10. SceAFIBwKgeB3Xh1

    • Unplug the bundled cable by pulling it away from the connector with a bit of force.

    • Unplug the display cable connector by lifting the tape and pulling it away from the connector.

    • Unplug the two antenna cables connected to the network interface card by prying it off with the flat end of the spudger.

  11. ytgkTbCLLZhEtwjA
    ytgkTbCLLZhEtwjA
    1MYvq6BnO1Bx5WSj

    • Remove the four 5.5mm screws using the Phillips #0 screwdriver.

    There are 5 screws holding down the motherboard, not 4. There are two screws at the top right of the board. The one that is not identified is situated between the side of the board and the fan close to the top edge.

    brianjbarber -

  12. jEoDEyhIbPQMC3ed

    • Gently lift the motherboard out of the casing.

  13. DFmsgv2TXtIFVb15

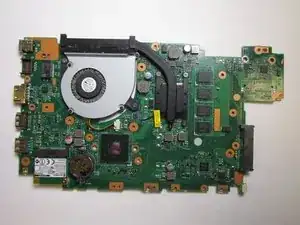

    • Flip the motherboard over so the fan is right side up.

  14. 2kuB33D1dlNGMv1C

    • Disconnect the fan from the motherboard by pulling the power cable connector.

  15. GYOEIKJmjFRlHoXA

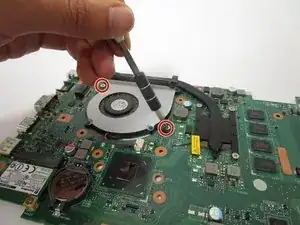

    • Remove the two 5.5mm screws using a Phillips #0 head screwdriver.

  16. PuXeiZqavMBLZktF

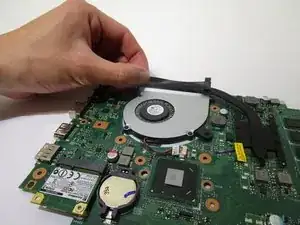

    • Detach the tape that connects the fan to the heatsink.

  17. D1cyP3h2cxhRTRM2

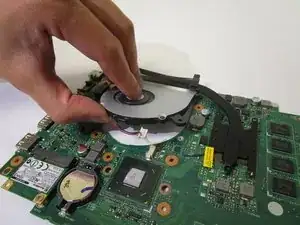

    • Lift the fan off to remove it from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Frances Tan

Mitglied seit: 19/01/17

143 Reputation

Ein Kommentar

Great guide. Re: STEP 11 - my Asus notebook had 5 screws securing the mb.

u1oo -
