This guide will show you how to remove the keyboard panel in order to access the internal parts of the laptop.
-
-
Turn off the laptop and flip it face down.
-
Using a Phillips #0 screwdriver, remove the seven 9mm screws circled in red.
-
With the same screwdriver, remove the four 5mm screws circled in orange.
-
-
-

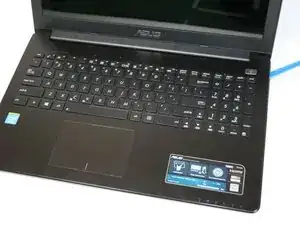

Flip the laptop face up and open the lid.
-

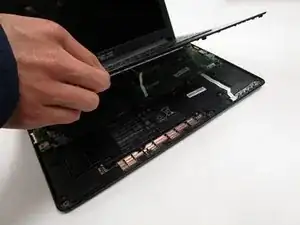

Use the plastic opening tool to pry around the entire edge of the keyboard panel to loosen the panel from the base.
-
-
-

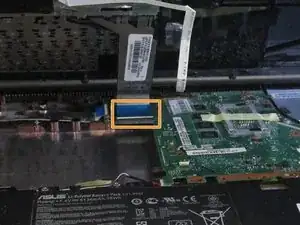

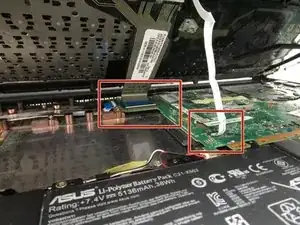

Disconnect the first ZIF cable by lifting the tab using the spuger tool or your fingernail and gently pull the cable out.
-

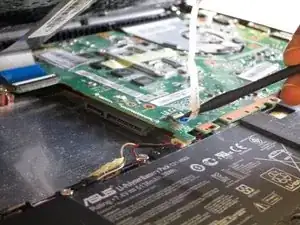

Disconnect the second ZIF cable by lifting the tab using your fingernail and gently pull the cable out. This one is more difficult to reach with the spudger.
-
-
-

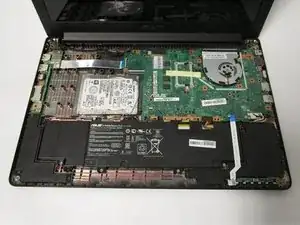

Remove the keyboard panel completely and set it aside. The internal components of the laptop are now exposed.
-
To reassemble your device, follow these instructions in reverse order.
