Asus X54C HDD, RAM Memory Replacement

Geschrieben von: ZFix
  • Kommentare: 4
Asus X54C HDD, RAM Memory Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

ASUS X54C, X54H, X54L, X54HR - how to replace or upgrade HDD, RAM memory, Wi-Fi module.


  1. GvNbibJObnvF2Orl
    GvNbibJObnvF2Orl
    Nv2E3bUqMS6vONIj

    • Disconnect the charger and switch off the laptop.

    • Two keys keep locked battery.

  2. iEEGIqHEQdiyJNiK
    iEEGIqHEQdiyJNiK
    qBDM5ZbfFXxkLHne

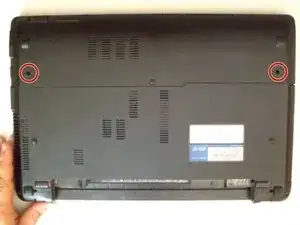

    • Remove the two Phillips screws.

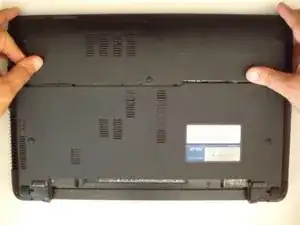

    • Remove the HDD cover.

  3. EbSIuAZWQ1RJ5YJE
    EbSIuAZWQ1RJ5YJE
    PdUByIs1pJxlBSmF
    PILyyfZecb6cQyPV

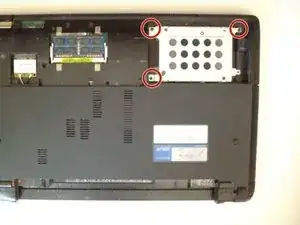

    • The HDD caddy iz secured by three Phillips screws. Remove them.

    • Use the black tape near to the SATA connector to slide and remove the HDD.

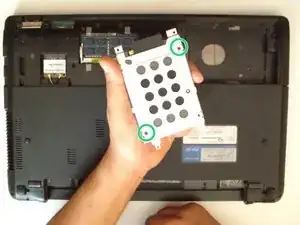

    • To remove the hard disk from the HDD caddy, unscrew the 2x Phillips screw.

  4. 6v6BVYNoOxEky3Gd
    6v6BVYNoOxEky3Gd
    jrHPXMKcpVCM1UCW
    4AcIQ3YYVXLPtoHR

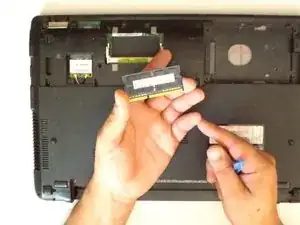

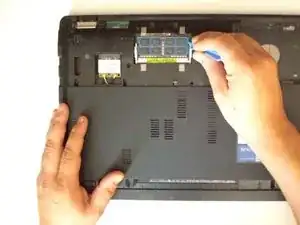

    • There is one expansion slot for a memory module:

    • SO DIMM 204-pin, DDR3 SDRAM, 1333 MHz

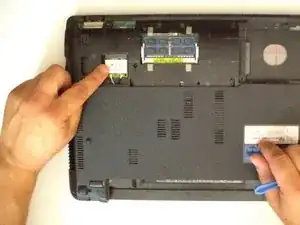

    • Under the HDD cover is also the Wi-Fi card.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

ZFix

Mitglied seit: 09/12/13

188213 Reputation

4 Kommentare

Bonjour,

Le Portable ASSUS X54C peut-il supporter 8Go de RAM alors qu’au départ, il en a 4 Go ?

merci pour le tuto.

CR (rousselclaude0995@orange.fr)

claude ROUSSEL -

Bonjour, oui il peut aller jusqu'à 8Go maximum.

Brendan -

bonjour, un asus x54h peut il supporter 8go de ram ?

merci

mysoundsyourears -

Bonjour,

Oui il peut supporter 8 Go de RAM maximum.

Brendan -
