Asus X54C Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

3 - 5 Minuten

Einleitung

ASUS X54C X54H X54HR - How to remove and replace the keyboard.


  1. GvNbibJObnvF2Orl
    GvNbibJObnvF2Orl
    Nv2E3bUqMS6vONIj

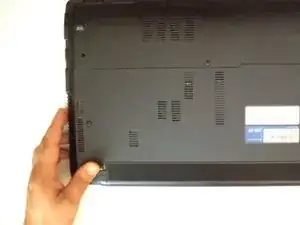

    • Disconnect the charger and switch off the laptop.

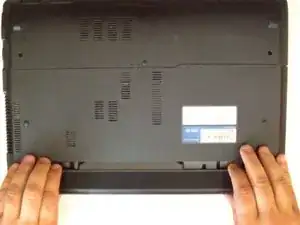

    • Two keys keep locked battery.

  2. HoSmfDGMjvK5dUWv
    HoSmfDGMjvK5dUWv
    gvHTPJoE4EumxyUf
    IlKeGXaodHVZtmQi

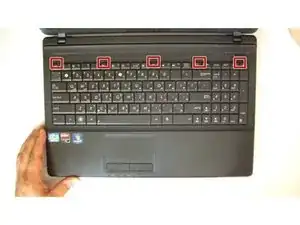

    • The Keyboard is held by 5x locking clips.

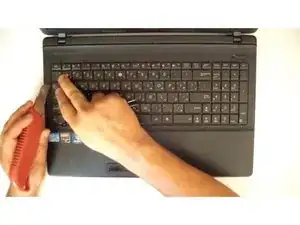

    • Use a tool with with a thin tip and lift slightly the KB from the left side.

    • Unlock clips one by one.

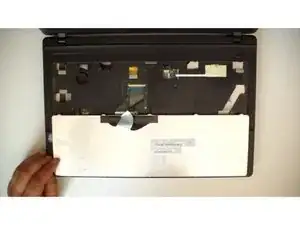

    • Disconnect the KB ribbon cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
