Asus X54C-RB92 Hard Drive Replacement

Geschrieben von: Julia Huang
  • Kommentare: 0
Asus X54C-RB92 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Did your computer suddenly crash? Was everything saved suddenly lost? This may be the time to replace your hard drive.

  1. XHe4Yl5YmP2d4vHC

    • Hold laptop upright using both hands.

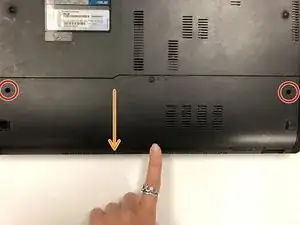

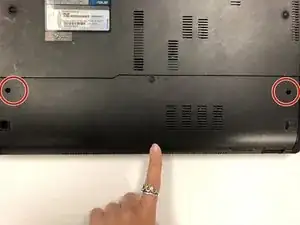

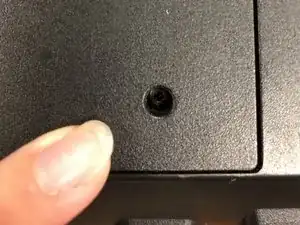

  2. tn2ugflymKYdgAdk
    tn2ugflymKYdgAdk
    C2YUhjiXuvjYhG2K
    tqMMGZQeLWNK5Por

    • Unscrew the two 12 mm screws shown in the image for access to the hard drive.

    • Remove the base of the laptop for access to the hard drive.

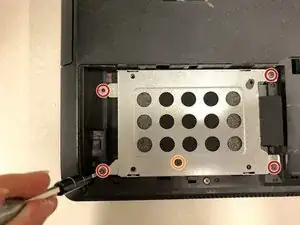

  3. KE3hWD1g1TKOkRrk

    • Remove the four 12 mm hard drive bracket screws.

    • Remove the one 7 mm screw.

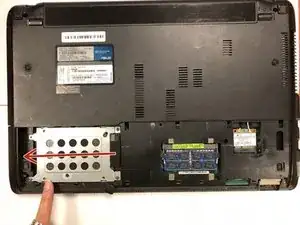

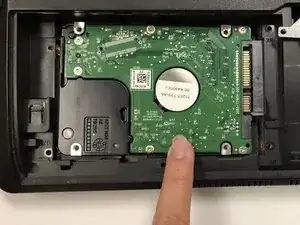

  4. V1DJdBYWINrMtGbr
    V1DJdBYWINrMtGbr
    uW1ZgltRh1TDZXQm

    • Remove the silver hard drive cover by sliding it left to reveal the green hard drive.

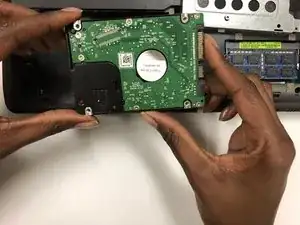

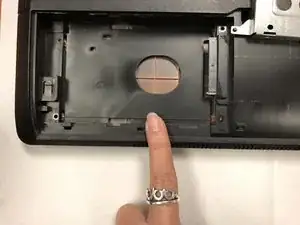

  5. LlLTYsAuHMcKFoCI
    LlLTYsAuHMcKFoCI
    6eegUwqrxIXkPa2E
    HbwM6EWtvBewkxUo

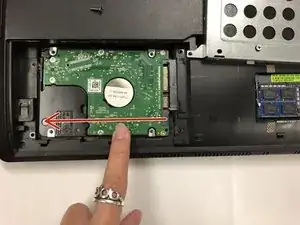

    • Detach the hard drive by sliding it to the left.

Abschluss

To reassemble your device, follow these instructions in reverse order.
