Asus X550CA RAM Replacement

Geschrieben von: Leo Carr
  • Kommentare: 2
Asus X550CA RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

In this guide, you can replace/upgrade the RAM inside your ASUS X550CA to give it a bit more performance.

  1. L1VST4xYKmJLM4Ks
    L1VST4xYKmJLM4Ks
    RixpDDjqSOZZm5LQ
    BZSVkVrrBPZSOAgR

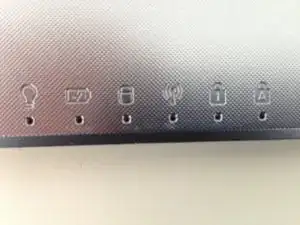

    • Please make sure that your computer is fully Shut Down, so that the lights on the bottom of the computer are all of (Picture 2) and the Power Cord is unplugged.

  2. WqjkltyyrKf6OfNU
    WqjkltyyrKf6OfNU
    Y25iMdD5ACBUjBBb
    xTxWJsLeNflhvdLf

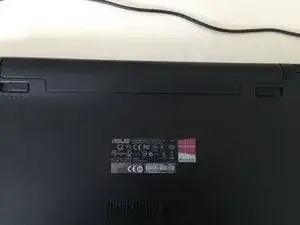

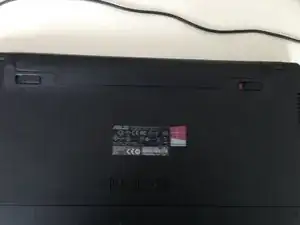

    • Spread the 2 clips on each side of the battery out, the one on the right should lock, and you will need to hold the one on the left while you pull the battery out. See the pictures for more details.

  3. BoOFPRNX2mbjs2WA

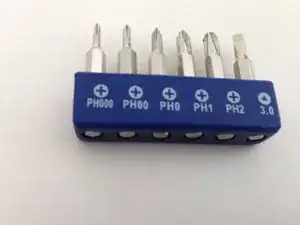

    • You now need to use a screwdriver. I use the PH00 head of the iFixit 64 Bit driver kit.

    • Shown is bits from the 54 bit driver kit, not sold anymore. you can now get the 64 bit kit only.

  4. djxWpBjNJEJWKurX
    djxWpBjNJEJWKurX
    MFraOaTREysGOSQl

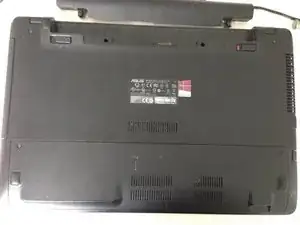

    • There are 2 screws on each side of the bottom of the computer. These are above the bottom 2 feet. They are quite long.

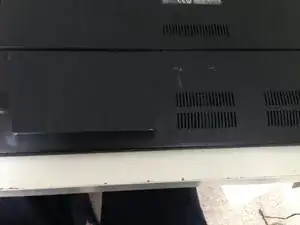

  5. DaUN2dSefRdCKYHs
    DaUN2dSefRdCKYHs
    SubuAETpiCnAncYo

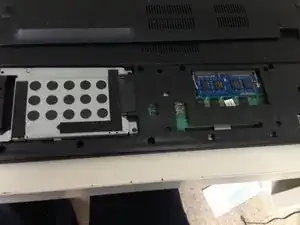

    • The bottom is held on by clips. Pull back and then up to remove the plastic shell.

  6. XTSKtVXaF6Wk2c5A
    XTSKtVXaF6Wk2c5A
    351yMbgAPOwZmUYv
    VaHpcmijTAEosoKx

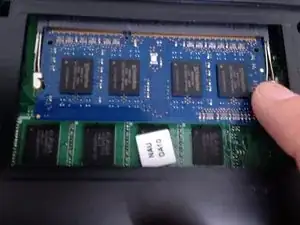

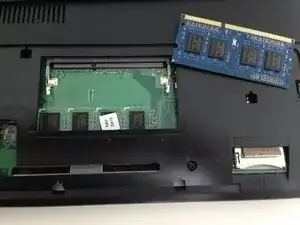

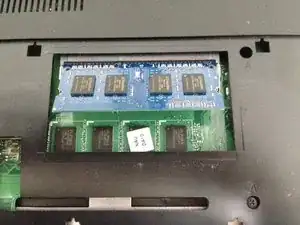

    • To take out the RAM, locate the RAM Stick (SODIMM) towards the right of the computer. Spread the clips on either side of the stick and the RAM stick should pop up. You can then pull out, and replace.

    • To reinstall, insert the new RAM stick at a slight angle (about 45 degrees). Push in and down to seat the RAM Correctly. Then just install the back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Leo Carr

Mitglied seit: 19/10/15

292 Reputation

2 Kommentare

What is maximum memory for an ASUS X550CA?

Ben Bullard -

Mine came standard with 8GB, and I found that one of the sticks was soldered to the motherboard. I think it only takes 8GB sticks, so therefore the maximum memory is 12GB.

Leo Carr -
