Einleitung

A damaged or broken fan can cause your laptop to overheat. This guide will show you how to separate the cooling fan from the motherboard. Before removing the cooling fan, you must first remove the motherboard from the laptop.

  1. eYoMKvCaFjBuSlDK

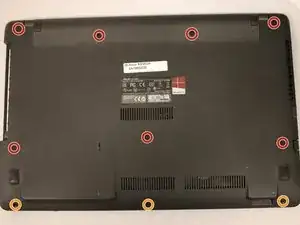

    • Using the Phillips #0 screwdriver, remove the seven 14 mm screws on the bottom of the laptop.

    • Then use the Phillips #0 to remove the three 4 mm screws on the bottom of the laptop.

    Can I get a link to the replacement fan, please?

    Riley's Alias -

  2. cIscZgFsvT6FbOTi
    cIscZgFsvT6FbOTi
    mNEOR5UjUV5gvrlm
    sFxJrNJq2C3geFoI

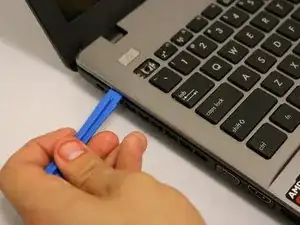

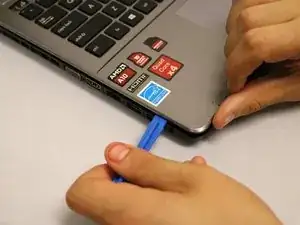

    • Insert a plastic opening tool between the keyboard and base of the laptop to pry the keyboard away from the base. Do this around the entire perimeter of the laptop.

    • This disconnects the face of the keyboard. Gently lift the keyboard up to expose the motherboard.

    • There are still ribbon cables connecting the keyboard face to the motherboard. Do not pull the keyboard away roughly.

  3. PWUGXKHCWvpjb6gH
    PWUGXKHCWvpjb6gH
    mYsDFjtk2nrr4W53
    RnufPfUciVr6ABdr
    • Gently lift the keyboard to access the three ribbon cables connected to the motherboard

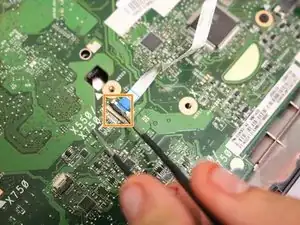

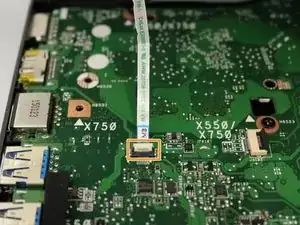

    • Using precision tweezers, flip up the white and black retaining flaps on the ZIF connectors that hold the two smaller ribbon cables in place.

    • Gently pull the ribbon cables from their sockets on the motherboard.

  4. 4MgELkWfLKNZY4EG
    4MgELkWfLKNZY4EG
    fUYWMU6KKK6tqjKc
    RwilEho2dMfpmABU

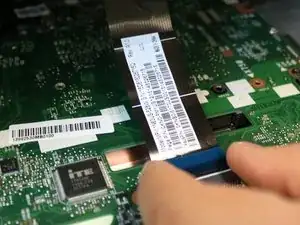

    • Push the two white clamps on the large ZIF connector towards the screen.

    • Gently remove the track pad ribbon cable from its connector.

  5. VnBP3pTxBVVKi1b6
    • Remove the keyboard.

  6. fQbjgs3AR3kN6UZs
    fQbjgs3AR3kN6UZs
    N5YXQnL2sIMQLPYD

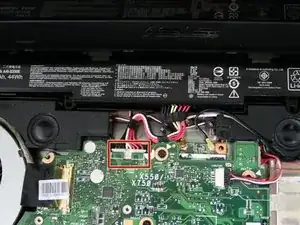

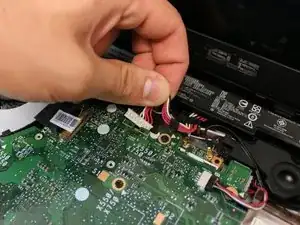

    • Disconnect the multi-wire battery plug from the motherboard.

    Ic charging type?

    Abi Ryouka -

  7. MntoXnPkPaqxRqOC
    MntoXnPkPaqxRqOC
    LXclY14OIXbmfwFI
    6v3ERWIorG1ffuZa

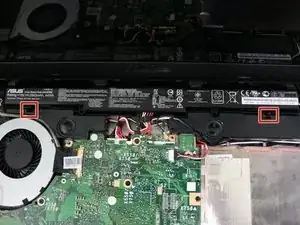

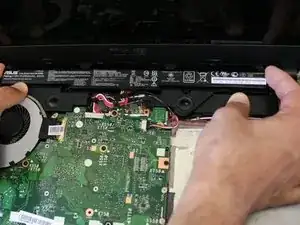

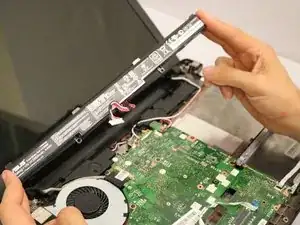

    • Pull the two tabs holding the battery in place and lift the battery up. It should remove easily.

  8. nioeBkVLOZDmfHbu

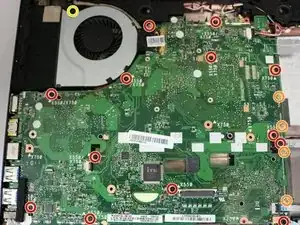

    • Use a Phillips #0 screwdriver to remove the thirteen black 4 mm screws from the face of the motherboard.

    • Use a Phillips #0 head screwdiver to remove the four silver 4 mm screws from the face of the motherboard

    • Use a Phillips #0 head screwdriver to remove the one black 4 mm screw from the indented area above the fan.

  9. 1uDJA3I2fGqs2bV1
    1uDJA3I2fGqs2bV1
    I4vleAyHDOuwIbYE
    1pfDuG1lQcKVkYy3

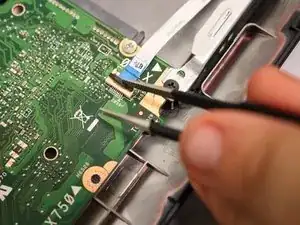

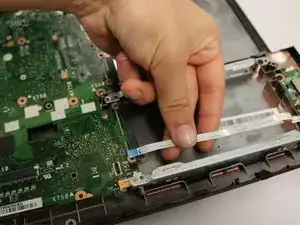

    • Use the precision tweezers to flip the black switch holding the film connected to the USB port.

    • Gently remove the film from it's connection to the motherboard.

  10. h44ZmgPkJqhuIq15
    h44ZmgPkJqhuIq15
    D1jDZrWRLCTdX1Ya

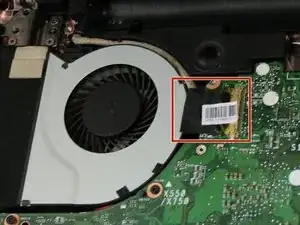

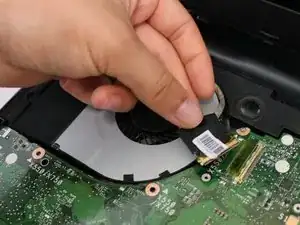

    • Gently pull the thick wire in between the fan and the motherboard. To release the wire connected to the motherboard, gently pull towards the cooling fan.

  11. IroOlfDgB1l6LudQ
    IroOlfDgB1l6LudQ
    toLHDPoKlKs44Oeq

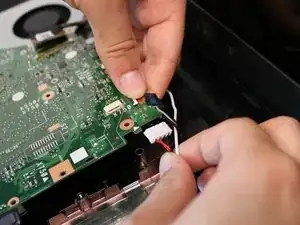

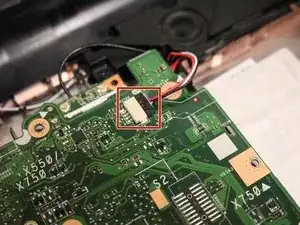

    • Gently pull the red, black, and white wire found on the top right-hand corner of the motherboard.

  12. mquuA3UkXiVHmgb3
    mquuA3UkXiVHmgb3
    WYrdYLfGQOkWYL66

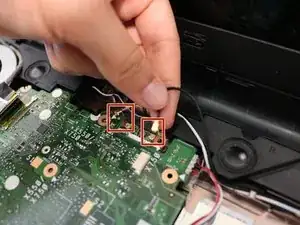

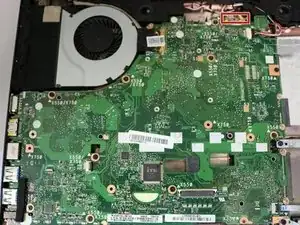

    • Lift the black and white wires out of their ports at the top of the motherboard.

  13. yu1qePYUPLuVWKdi

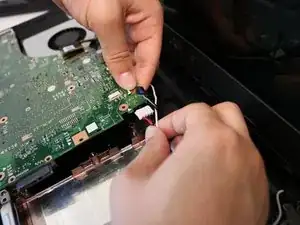

    • Lift the top right corner of the motherboard to access the final wire.

    • Gently remove the wire from the port connecting it to the motherboard.

  14. 6WslKDGkKQlns5tT
    • Remove the motherboard from the laptop.

  15. 4mieKJhYMNWpEJJM
    4mieKJhYMNWpEJJM
    IAXuH5SvnynR3vUT

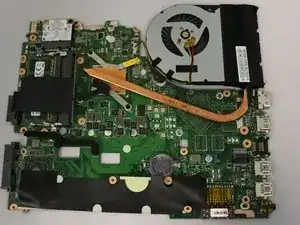

    • Turn the motherboard over so that the copper heat sink and fan pin connections are facing towards you.

  16. C6gRHEkvET1DRUJy

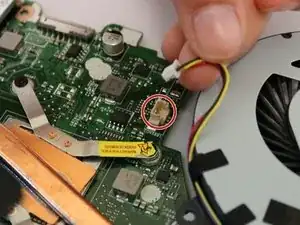

    • Pull the red, black, and yellow wire from out of its connection port.

  17. 5WGFjCOPKNZiTGDK

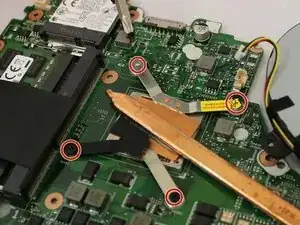

    • Remove the four 4mm Phillips #0 screws that are binding the copper heat sink to the motherboard.

  18. rHtw3ZihOrJkSFWE
    • Remove the fan assembly from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
