Asus X5511M-RCLN03 Battery Replacement

Geschrieben von: Ryann Easterbrook
  • Kommentare: 3
Asus X5511M-RCLN03 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

2 - 8 Minuten

Einleitung

In this guide, you will learn how to remove or replace the battery of your laptop.

  1. RHTHAe3WwNIV2uK2

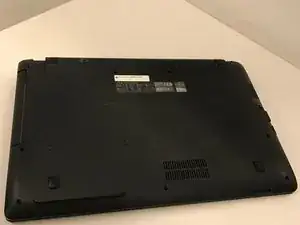

    • Position the laptop with the back cover facing upward.

  2. lDxpFYCbiqWuGysT

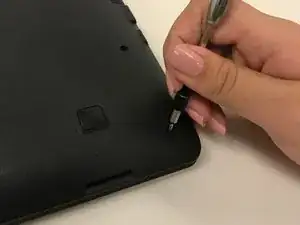

    • Remove all 4 mm screws using a #00 Philip's screwdriver.

  3. cdSwGxIexjWbUYJt

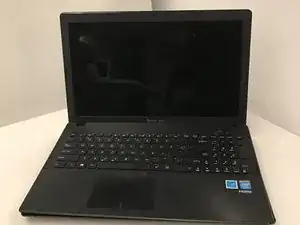

    • Open the laptop with the keyboard facing upward.

  4. Sn2QjpvFTUAcqfDV

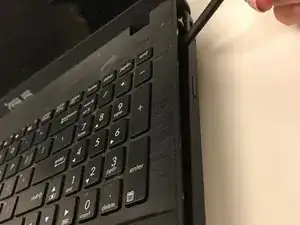

    • Carefully pry up the keyboard cover with your fingers or with a plastic spudger.

  5. TjsoYZOHZXOXn4cC
    TjsoYZOHZXOXn4cC
    yaggEDcKdXMGjEZ4

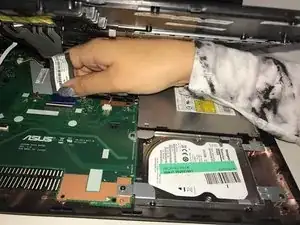

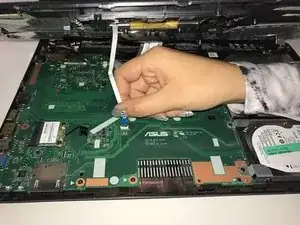

    • Remove electrical ribbons by gently lifting up the tab that is holding them down, then pulling them gently.

  6. IfLrmAYhn5LTWZRF

    • Set the keyboard plate aside. Gently lift up battery to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ryann Easterbrook

Mitglied seit: 12/01/17

139 Reputation

3 Kommentare

Peer review:

Step 1: This step is unclear and seems unnecessary. It should be removed or reworded to be more specific: "Position the laptop with the back cover facing upward."

Step 3: This step is also unclear and seems unnecessary. It should be removed or reworded: "Re-position the laptop with the back cover facing downward."

Step 5: This step is grammatically confusing and should be reworded. Example: "Lift up the tab covering the electrical ribbons. Pull the ribbons gently to remove them."

Courtney Clark -

Steps 5 and 6 are missing photos so the instruction is not clear.

Courtney Clark -

This was a easy and strait forward repair it took longer to find the tools than to do the repair. The hardest part for me was plugging the flex cables back in as I have a tremor in my hands. the repair took about 10 minutes.

DANIEL HATHAWAY -
