Asus X551CA Touch Pad Replacement

Geschrieben von: Taylor Downey
  • Kommentare: 25
Asus X551CA Touch Pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

23

Zeitaufwand

15 Minuten

Einleitung

The touch pad controls cursor movement and is one of the most used parts of the laptop. It is exposed to frequent wear and tear and may need replacement.

  1. SdufjLxoHu3SMTkX

    • Power off and unplug your laptop before you begin.

    • Turn the laptop upside-down and remove the following screws using a Phillips #0 driver:

    • Two 9.5 mm screws in the middle of the back edge, and one 9.5 mm screw in the right edge

    • Two 4.3 mm screws in the back corners

    • One 17.5 mm screw at the left edge near the optical drive

    • Three 4.3 mm screws in the front edge

    screw assignments are definitely wrong. I swapped the red and the green, as per comment above, and kept the blue as-is.

    jasonbuechler -

    jason is right

    starwilson -

    correct, swap the green and red

    Josh -

    Jason is correct

    Clem Lanoe -

    Thanks everyone. It does seem like someone got their screws mixed up when they wrote this guide. I’ve made some changes as you all suggested, so the screw placements should be more accurate now. If anyone with this laptop could verify the screw measurements with a digital caliper, that’d also be very helpful.

    Jeff Suovanen -

  2. ApSWcMKOiXCRVPKH

    • Use the plastic opening tool to separate the keyboard plate cover from the bottom cover. In order to do this, insert the plastic opening tool in between the keyboard plate cover and the bottom cover, then slide along edges to pry open.

  3. TIVAeYCtcuG2BfKi

    • Locate the three ribbons connecting the keyboard plate cover to the bottom cover.

  4. EqSCQFAiRSL2TuLw
    EqSCQFAiRSL2TuLw
    YPdCJ62tuVtKeZek
    p5xDTIlA3t3oBOnJ

    • Invert the laptop in order to gain access to the ribbons.

    • Remove each ribbon by flipping the small white plastic flap up and gently pulling on the ribbon.

    Don't remove the ribbons, just move the keyboard slightly forward to remove the old battery and insert the new one (just make sure they are all connected when you put it back)

    Flyer292 -

  5. GOjnwlUXH3EWwcs6

    • Now that the ribbons have been detached from the bottom cover, carefully remove the keyboard plate cover. Once it has been removed, place it in a safe and moisture free area so it does not get damaged.

    Is painting your nails crucial for step 5?

    wiedzmin -

    Yes and you have to put lotion on

    joemidjette -

    Now, that is a stupid question! Of course! As I am working on 551M, I naturally have to have nails painted orange, with blue accents!

    gregtokarski -

    that boy ain't right

    Rich Spillman -

  6. ROCvrEkxUGBGGDxU

    • Unscrew the three 5.5 mm Phillips #0 screws with the Phillips #0 Screwdriver.

    where is it jumper cmos laptap asus s400c.in motherbord .for rest cmos..plz hllp me?can not see ....

    arash -

  7. FVulKeVGEPwcVGJJ

    • Once the screws have been removed, place your fingers on the left corners and push the hard drive towards the right edge of the laptop (relative to the picture).

  8. uKDVWxSIbZFBHCOJ

    • Once it is free, remove the hard drive from its internal cavity.

  9. DLy1jh5O6IZtMStv

    • Using the Phillips #0 Screwdriver, unscrew the 5.5 mm Phillips #0 screw that holds the spacer in place.

    this spacer may be a cd rom drive or potentially a second storage device like an ssd or hard drive. Either way the process is the same, remove the single screw, and slide to the right.

    Josh -

  10. F5Nbv5ESnITvyNym

    • Remove the spacer from the laptop by gently sliding it towards the right edge of the laptop.

  11. cPPHkn5dXkww3TJN

    • Use the Phillips #0 Screwdriver to unscrew the 3.2 mm Phillips #0 screw which attaches the WiFi card to the motherboard.

  12. JRDblQQARmxL5wsQ

    • Disconnect the Wifi card from the motherboard by gently sliding it towards the right edge of the laptop.

  13. hHG4lYMUTlXTrfSN

    • Remove each of the two small antenna connections by disconnecting one wire at a time. Each wire should easily unsnap from the Wifi card.

    mine only had the black cable and the small wifi card was slightly different. the card itself has two available connections and is labeled as to where the black cable (main) and white cable if it were present (aux) cables connect.

    Josh -

    Could i replace It for a wifi ac card? Wich could be compatible?

    david_rpz -

    This computer uses a Mini PCIe slot card, as you can see in the photo's. You can órder almost any card, from either FENVI brand (Intel) or Artheros (Qualcomm), just make certain you order a card that specifically says it is a HALF HEIGHT Mini PCI-e card. Intel stop producing cards like this after the 7265HMW card but other brands make compatible cards. In the Intel design, any card that ends in 'HMW' is a card that is a mini PCIe card. If you see any other combination of letters then it is not likely to be compatible.

    If you have any questions, ask the vendor if the card is compatible with your computer.

    Animal -

  14. vfCakJv3JeahNvuY

    • Remove the battery from the laptop by applying pressure on both ends and lifting it out of the case.

    Awesome Awesome precise elaborate instructions

    biggieblackiep -

  15. FADwyWCPJQQ5at4M

    • With the Phillips #0 Screwdriver, remove the nine 5.5 mm Phillips #0 screws which hold the motherboard in place.

    there is one more screw that must be removed at the bottom right corner of the motherboard, just out of view.

    Josh -

    Top two screws, next to the display hinge, are slightly larger screws.

    iceman -

  16. gJihCGXLTerF24PG
    gJihCGXLTerF24PG
    XaRQ5BGmexXM4avE

    • Now, locate the two wires connected to the motherboard.

  17. PsdbksAS4uWFmHQK
    PsdbksAS4uWFmHQK
    gykNJKEtHDoXPEff

    • Remove the wires by easily pulling them parallel to the motherboard's surface.

    • The wires are very fragile. Be sure to pull carefully so that they do not break!

  18. m24GptZuc1AAaEyT
    m24GptZuc1AAaEyT
    BHgRmuFYvNKWKVRh

    • Remove the LCD display connection by gently pulling on the attached wire.

    • Gently lift any tape that may be holding the connection.

    If the tape is removed when disconnecting, be SUPER sure that the connector is the right way before reconnecting. I managed to brake this connector by putting it in the wrong way! Both sides look very similar.

    Ben Garrod -

  19. MEpFjPJxdDRugGJM

    • Remove the motherboard from the case by gently lifting it upward.

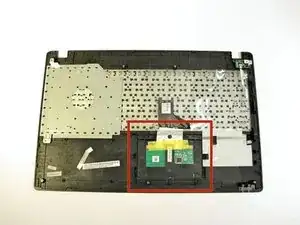

  20. Afbcdis3UclhitCt

    • Flip over the keyboard plate cover so the keys are facing down to locate the back of the touch pad.

  21. A4WvhjFMk1AJqJkR

    • Pull up the aluminum tape off of the keyboard cover until it is only attached to the touch pad.

    • Do not fully remove the aluminum tape!

  22. nMsONLNlhZTdZ5A4

    • Locate and unscrew the three 3.2 mm Phillips #0 screws at the top edge of the touch pad using the Phillips #0 screwdriver.

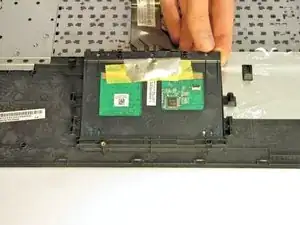

  23. xWdkZS6mgmq1mbFG

    • Lift the top edge and gently slide the bottom edge out from underneath the keyboard plate cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
