Einleitung
If you are having issues with windows giving you error messages for your hard drive, or have identified that there are bad sectors in the hard drive, this is an indication that the hard drive should be replaced on the laptop. Once you have identified that the hard drive is indeed the issue, replace it using this guide. For more troubleshooting advice, click here. Ensure that before removing the hard drive, the laptop is powered off, and the battery has been removed.
Ersatzteile
-
-
Use a Phillips #0 screwdriver (PH0 bit) to remove the four 5.0 mm screws that are securing the bottom of the laptop.
-
Use a Phillips #0 screwdriver (PH0 bit) to remove the six 11.0 mm screws that are securing the bottom of the laptop.
-
-
-
Lift the edges of the keyboard using the plastic iFixit opening tool and raise the keyboard slightly to see the inside of the laptop.
-
-
-
Lift back the clip on the ribbon tape, and pull the tape out in order to remove the keyboard from the laptop.
-
Remove both pieces of the ribbon tape connecting the keyboard to the motherboard.
-
-
-
Remove the bundled cable connector attaching the battery to the motherboard with the plastic iFixit opening tool.
-
-
-
Use Phillips #0 screwdriver (PH0 bit) to remove the four 6.0 mm screws attaching the battery to the laptop.
-
-
-

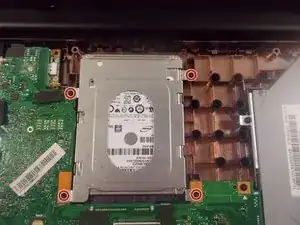

Use a Phillips #0 screwdriver (PH0 bit) to remove the four 6.0 mm screws that are securing the hard drive.
-
-
-

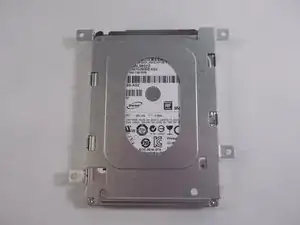

Lift the hard drive up and pull it towards the screen so that it disconnects from the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
2 Kommentare
Thanks. Step 4 cost me time and money because this guide isn’t full. You need to move metal bracket before disconnecting the battery otherwise there’s no way to remove it without tearing whole connector. @%^$$@$#!
ryuuganhp, thanks for your comment. Very important and helpful.
