Asus X555LA-SI305041 CD Laufwerk austauschen

Geschrieben von: Alex Turner

Kommentare: 21

Asus X555LA-SI305041 CD Laufwerk austauschen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

10 - 20 Minuten

Einleitung

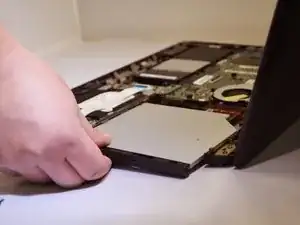

Wenn dein CD Laufwerk defekt ist, oder du ein besseres einbauen willst, dann hilft dir diese Anleitung. Man kommt leicht an das Laufwerk und der Austausch ist ziemlich einfach. Es brauchen keine weiteren Teile entfernt zu werden. Wenn das CD Laufwerk defekt ist, kann man es kaum reparieren und muss es austauschen.

Werkzeuge

Schritt 1

Entferne folgende Kreuzschlitzschrauben #0 vom unteren Gehäuse:
Sechs 9 mm Schrauben
Vier 11 mm Schrauben

Screws are 9mm instead of 90mm.

Also the 2 screws in the back corner (screen attachement side) have a slighlty bigger diameter (9mm in length as well) so they are not to be mixed with others 9mm lenght screws.

Laurent Potterat - 24/01/16

thank you, thank you for your comment. It's the only place on the entire www that makes that clarification.

river2438 - 25/02/16

are these screw sizes accurate. im looking for 9mm and 11mm screws for the asus x555la laptop also whats the M size of the screw ? cant seem to find the right screws online.

Matthew Bennett - 03/04/18

https://www.how-fixit.com/laptop-repair-...

says remove 10 screws (SCREW M2.5*8L, SCREW M2*12L, SCREW M2*9L) on the bottom case.

It looks like there was an image of which was which but it’s not showing for me!!

A base screw pack for Asus x555l laptop on eBay says: The pack contains 2x8mm 4x12mm 4x9mm !!

davidafloat - 12/07/20

Just wondering where is 11mm located? Is it on the middle? And the rest of 9mm are on the corners?

rudolphbarcellano - 11/09/20

Schritt 2

Trenne die obere Abdeckung mit einem Plastiköffnungswerkzeug vom Laptop ab.
Beginne damit an der Vorderseite des Laptops.
Gehe nun weiter un die ganze Abdeckung herum bis du unter dem Bildschirm bist und die vordere Abdeckung ablösen kannst.
Entferne die obere Abdeckung noch nicht ganz, sie ist noch mit zwei Flachbandkabeln angeschlossen. In den folgenden zwei Schritten werden diese abgelöst.

On my X555LA there seems to be a center snap or two that won't release. Edges are all free on all sides, but somewhere in the middle it's tied down with no give.

tmaccabe - 16/09/16

It finally came loose, after one of two center snaps broke. It seems you are supposed to push the bezel slightly back towards screen as you start to lift it. Lift it too much at first, and they catch vigorously.

tmaccabe - 16/09/16

Yes I encountered this problem as well, there are 2 very annoying clips at the center of the keyboard, a little force will be required to release them.

Nathan Early - 04/01/17

Actually, after this step there’s a shortcut: go to step 7 (skip 3-6), don’t disconnect the ribbon cable, just peel it off the HDD carefully, move the board aside. Go to step 8, instead of “lifting” slide HDD out. Skip step 9.

Saves at least 10 minutes and avoids disconnecting cables that don’t need to be disconnected.

Sergey Sobolev - 30/07/19

Schritt 3

Klappe zum Öffnen des ZIF-Anschlusses die kleine weiße Lasche mit dem Plastiköffnungswerkzeug nach oben.
Ziehe vorsichtig das weiße Flachbandkabel aus dem Anschluss heraus und löse es ab.

Schritt 4

Klappe die graue Lasche nach oben, um die ZIF-Verriegelung am Tastaturkabel zu lösen.
Ziehe vorsichtig das schwarze und blaue Flachbandkabel aus dem Anschluss heraus.

Beim wieder Zusammenbauen bekomme ich die Lasche nicht wieder verankert, sie hat keinen Halt.. wird sie eingeklemmt oder funktioniert das irgendwie anders? Danke!

nana.belke - 12/06/19

this step can be omitted: you can remove the disk even without disconnecting the black and blue ribbon cable out of its connector.

giulia lizzani - 19/01/21

This step can be omitted if you can prop the keyboard up and get access to the disk screws with a screwdriver, not entirely easy.

It’s probably best to release the ribbon cables. Flip up the narrow grey clamps, up beyond the vertical, and slip the cables out.

To put them back in, keep the clamp strips up, then push the flat cables in. They go in 4 or 5 mm. Then rotate the clamp strips back down. Give a gentle tug on the cables to make sure they’re firmly held.

Fixit User -

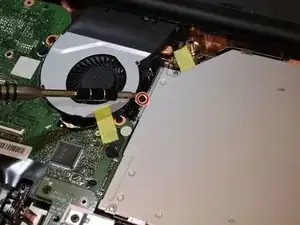

Schritt 5

Jetzt kannst du die Tastatur und die Abdeckung ganz abnehmen und in das Innere des Laptops hineingelangen.

front panel and keyboard is saprate item ?

single item

deepak diggekar - 18/10/16

prise this keyboard

deepak diggekar - 18/10/16

is pune india avalable

deepak diggekar - 18/10/16

send cell no

deepak diggekar - 18/10/16

And how do you replace the actual keyboard - that's the key point missing here!

Darren Wogan - 01/04/17

The keyboard and palm rest seem to need to be replaced as a single item. What about the mouse pad - this is a separate item, held on by three screws, which may well need to be swapped from the old keyboard and palm rest combination. However no mention is made of that here - why not? I thought IFixit was normally meant to be good with this sort of thing.

Darren Wogan - 16/08/18

P.S. I bought a combined item (don’t even think about trying to do the keyboard alone). The mousepad does potentially need to be separated from the old keyboard rest and transferred to the new item. There are 3 screws to be undone - though these can be fiddly and stiff. Anyhow, mine was successfully replaced using this approach, including swapping the mousepad over as described.

Darren Wogan - 16/08/18

Nice that you posted a few pics, but you need at least a dozen more to really show people how to open this laptop. Getting outthe motherboard is not recommended for rookies!

Michael James - 07/02/19
