Asus X555LA-SI305041 Festplatte austauschen

Geschrieben von: Tyler Stevenson
  • Kommentare: 43
Asus X555LA-SI305041 Festplatte austauschen

Schwierigkeitsgrad

Mittel

Schritte

10

Zeitaufwand

15 - 30 Minuten

Einleitung

Wenn dein Computer beginnt, langsamer zu werden, öfter einfriert oder einen Blue Screen zeigt, ist vielleicht deine Festplatte defekt. Wenn sie noch nicht ganz kaputt ist, musst du ZUERST ein Backup machen, bevor du die Festplatte wechselst!

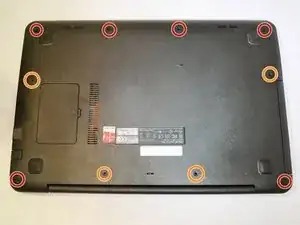

  1. ymqFViOS3THGYJjZ

    • Entferne folgende Kreuzschlitzschrauben #0 vom unteren Gehäuse:

    • Sechs 9 mm Schrauben

    • Vier 11 mm Schrauben

    Screws are 9mm instead of 90mm.

    Also the 2 screws in the back corner (screen attachement side) have a slighlty bigger diameter (9mm in length as well) so they are not to be mixed with others 9mm lenght screws.

    Laurent Potterat -

    thank you, thank you for your comment. It's the only place on the entire www that makes that clarification.

    river2438 -

    are these screw sizes accurate. im looking for 9mm and 11mm screws for the asus x555la laptop also whats the M size of the screw ? cant seem to find the right screws online.

    Matthew Bennett -

    https://www.how-fixit.com/laptop-repair-...

    says remove 10 screws (SCREW M2.5*8L, SCREW M2*12L, SCREW M2*9L) on the bottom case.

    It looks like there was an image of which was which but it’s not showing for me!!

    A base screw pack for Asus x555l laptop on eBay says: The pack contains 2x8mm 4x12mm 4x9mm !!

    davidafloat -

    Just wondering where is 11mm located? Is it on the middle? And the rest of 9mm are on the corners?

    rudolphbarcellano -

  2. XXPtxxWZMeKdwvrM

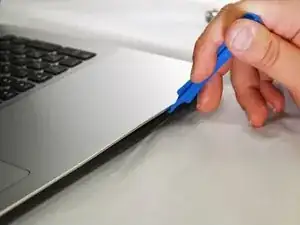

    • Trenne die obere Abdeckung mit einem Plastiköffnungswerkzeug vom Laptop ab.

    • Beginne damit an der Vorderseite des Laptops.

    • Gehe nun weiter un die ganze Abdeckung herum bis du unter dem Bildschirm bist und die vordere Abdeckung ablösen kannst.

    • Entferne die obere Abdeckung noch nicht ganz, sie ist noch mit zwei Flachbandkabeln angeschlossen. In den folgenden zwei Schritten werden diese abgelöst.

    On my X555LA there seems to be a center snap or two that won't release. Edges are all free on all sides, but somewhere in the middle it's tied down with no give.

    tmaccabe -

    It finally came loose, after one of two center snaps broke. It seems you are supposed to push the bezel slightly back towards screen as you start to lift it. Lift it too much at first, and they catch vigorously.

    tmaccabe -

    Yes I encountered this problem as well, there are 2 very annoying clips at the center of the keyboard, a little force will be required to release them.

    Nathan Early -

    Actually, after this step there’s a shortcut: go to step 7 (skip 3-6), don’t disconnect the ribbon cable, just peel it off the HDD carefully, move the board aside. Go to step 8, instead of “lifting” slide HDD out. Skip step 9.

    Saves at least 10 minutes and avoids disconnecting cables that don’t need to be disconnected.

    Sergey Sobolev -

  3. SORRSBcqAXLsRgQH

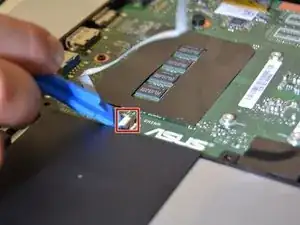

    • Klappe zum Öffnen des ZIF-Anschlusses die kleine weiße Lasche mit dem Plastiköffnungswerkzeug nach oben.

    • Ziehe vorsichtig das weiße Flachbandkabel aus dem Anschluss heraus und löse es ab.

  4. uuReKWdOeHxJ2UU1

    • Klappe die graue Lasche nach oben, um die ZIF-Verriegelung am Tastaturkabel zu lösen.

    • Ziehe vorsichtig das schwarze und blaue Flachbandkabel aus dem Anschluss heraus.

    Beim wieder Zusammenbauen bekomme ich die Lasche nicht wieder verankert, sie hat keinen Halt.. wird sie eingeklemmt oder funktioniert das irgendwie anders? Danke!

    nana.belke -

    this step can be omitted: you can remove the disk even without disconnecting the black and blue ribbon cable out of its connector.

    giulia lizzani -

    This step can be omitted if you can prop the keyboard up and get access to the disk screws with a screwdriver, not entirely easy.

    It’s probably best to release the ribbon cables. Flip up the narrow grey clamps, up beyond the vertical, and slip the cables out.

    To put them back in, keep the clamp strips up, then push the flat cables in. They go in 4 or 5 mm. Then rotate the clamp strips back down. Give a gentle tug on the cables to make sure they’re firmly held.

    Fixit User -

  5. Wx4ya4ZTwrXBMoFy

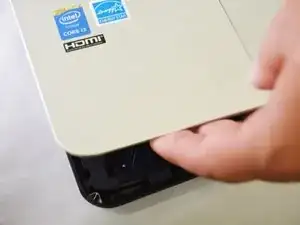

    • Jetzt kannst du die Tastatur und die Abdeckung ganz abnehmen und in das Innere des Laptops hineingelangen.

    front panel and keyboard is saprate item ?

    or

    single item

    deepak diggekar -

    prise this keyboard

    deepak diggekar -

    is pune india avalable

    deepak diggekar -

    And how do you replace the actual keyboard - that's the key point missing here!

    Darren Wogan -

    The keyboard and palm rest seem to need to be replaced as a single item. What about the mouse pad - this is a separate item, held on by three screws, which may well need to be swapped from the old keyboard and palm rest combination. However no mention is made of that here - why not? I thought IFixit was normally meant to be good with this sort of thing.

    Darren Wogan -

    P.S. I bought a combined item (don’t even think about trying to do the keyboard alone). The mousepad does potentially need to be separated from the old keyboard rest and transferred to the new item. There are 3 screws to be undone - though these can be fiddly and stiff. Anyhow, mine was successfully replaced using this approach, including swapping the mousepad over as described.

    Darren Wogan -

    Nice that you posted a few pics, but you need at least a dozen more to really show people how to open this laptop. Getting outthe motherboard is not recommended for rookies!

    Michael James -

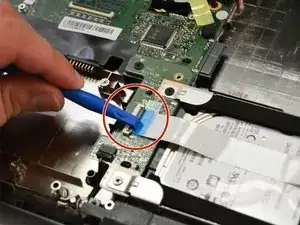

  6. 6TVIO24BKOrPGWgN
    6TVIO24BKOrPGWgN
    OKZtRcYVmeyAQCeu
    LvvDqnLlvNYW2Uif

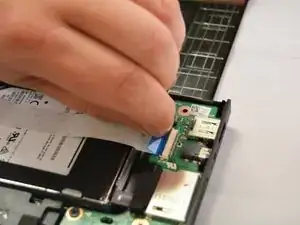

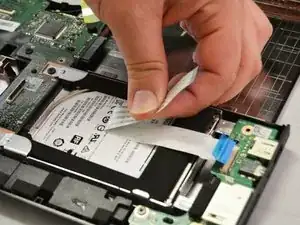

    • Klappe die graue Lasche am weißen Anschluss mit einem Plastiköffnungswerkzeug hoch, um die Flachbandkabel zu lösen.

    • Schiebe vorsichtig die Flachbandkabel heraus.

    • Wenn ein Kabel festgeklebt ist, dann löse es vorsichtig von der Festplatte ab.

    do u have a spare ribbon cable? i badly need it tnx

    arnold escabillas -

    or where to buy it?

    arnold escabillas -

    what do you call that ribbon? please i need to find something like that, or where can i buy it? i,m from Philippines

    Pao Arejola -

    Also this step can be omitted: you can remove the disk even without disconnecting the ribbon cable out of its connector; you just have to unscrew the controller either from one side or from the other

    giulia lizzani -

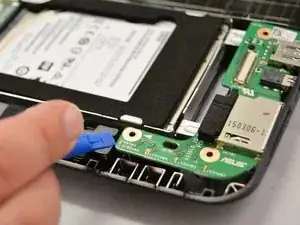

  7. 6eoEO56c1kIAlEBI
    6eoEO56c1kIAlEBI
    CwHWncDbrK2ylOJb

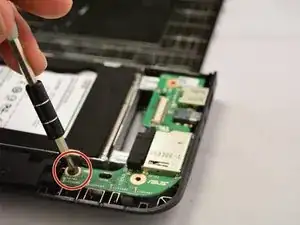

    • Drehe die einzelne 5 mm Kreuzschlitzschraube #0 vom Kopfhörer- und USB-Anschluss heraus.

    • Entferne den Kopfhörer- und USB-Anschluss mit dem Öffnungswerkzeug.

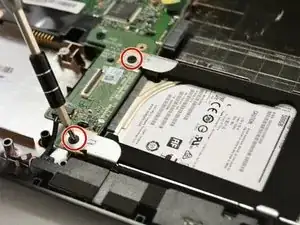

  8. YjimwKGFXB3CrtRB
    YjimwKGFXB3CrtRB
    P6uZCx1DSvpt3MRn

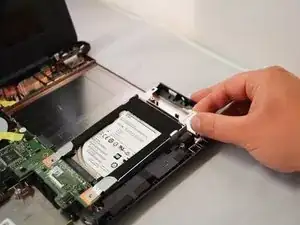

    • Entferne die beiden schwarzen 5 mm Kreuzschlitzschrauben #0 in den Ecken der Festplatte.

    • Hebe die Festplatte aus dem Gerät.

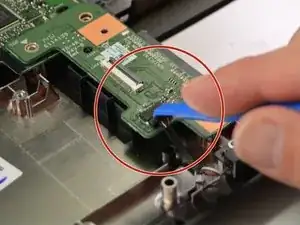

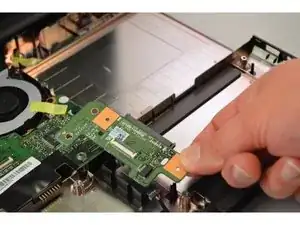

  9. GQqcZZhbo6Eo3MG1
    GQqcZZhbo6Eo3MG1
    gAnWdHrTFJnT6KMS
    cFAqm5pORq54oWSt

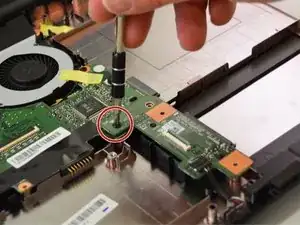

    • Löse den Stecker der Stromversorgung mit dem Öffnungswerkzeug ab.

    • Drehe die einzelne 5 mm Kreuzschlitzschraube #0 an der Steuerplatine der Festplatte heraus.

    • Entferne die Steuerplatine.

    Why is it necessary to remove the HDD controller? this step seems useless to me when exchanging only the HDD.

    Laurent Potterat -

    can the hard drive controller be changed someway?? without using salvage parts from the same model??? the laptop im fixing seems to be having an issue with this particular part (the laptop bsod something like dlfs.sys ). so, the hdd has been changed with a brand new seagate sshd. the problem still persist. what to do now????? the warranty is over now so that not even an option, although this has been brought to an authorized asus service center(bcoz there are no asus centers in my country wtf), they told me that the problem is really on the hdd. but i doubt it

    Cheej Guitarte -

    Did you ever figure this out? I have an X555LN that won’t recognize the hard drive and boots right to the BIOS, but the hard drive is fine in a USB enclosure. Friend said the laptop blue screened and then wouldn’t turn on. Thinking we might have similar problems!

    kazoodac -

    I also have a problem with the hard drive controller. My laptop only boots up when the power connector(shown above in the 1st step) is unplugged, odd.

    Jethro Tanjay -

    Also this step can be omitted: you can remove the disk even without disconnecting the red and white cable out of its connector; you just have to unscrew the controller either from one side or from the other

    giulia lizzani -

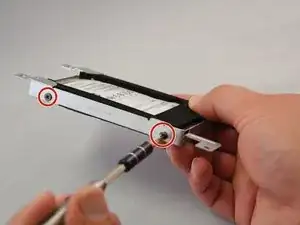

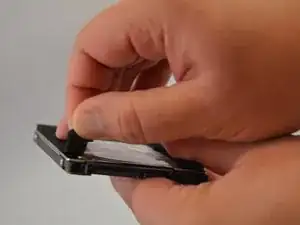

  10. RCV5ttvSOViLfH3h
    RCV5ttvSOViLfH3h
    VJst3atwbdWUmwID
    JHWL6ZYC6IOuVdcZ

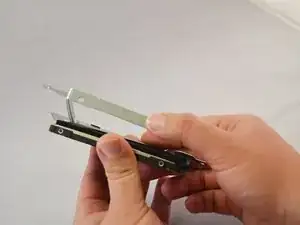

    • Drehe die vier 3 mm Kreuzschlitzschrauben #0 an der Festplattenhalterung heraus.

    • Entferne die Festplattenhalterung.

    • Ziehe langsam die drei Kontaktstreifen aus Schaumstoff hoch, so dass sie nicht zerreißen.

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

Tyler Stevenson

Mitglied seit: 28/09/15

651 Reputation

14 Kommentare

hi. i have the same laptop. the laptop bsod on me after i used it for a good 6 months. suddenly, when i start the laptop, it always boots me to the bios, the hard drive is change because i thought it is the problem (i just followed the solutions online which is a lot regarding the issue). my suspection is the hard drive connector to the motherboard pcb. is there any way i can replace with or where can i buy replacements for this same part? please help i really need the laptop for my school needs, and sorry for the bad english

Cheej Guitarte -

I had the same problem. Sorry but its also too expensive to repair and the repair doesnt solve problem %100

AYG -

Im having the same issue. My HDD fails to start when my hand is over the hdd connector (just slight pressure). Any solutions?

ieg -

This is caused by the connection socket on the PCB between the little PCB that plugs into the HDD and the motherboard. Turns out that the great amount of flex in the (crappy) plastic body of these laptops causes too much strain on the socket (opening and closing the screen) and eventually the connector breaks. I had to order a replacement PCB on Ali-express.

Ettienne -

Great guide, thanks a lot. One thing to note, I found it wasn't necessary to remove the whole hard drive controller just to replace the HD. I was able to just remove the audio port board and then slide the drive away from the controller.

Thanks again!

partsorder -

‘90mm screws ‘ should be 9mm

Holy S -

This was a great guide, thanks! However being an experienced technician, it didn’t take but about 5-7 min. to get the hard drive out to where I could test, and verify that it had crashed.

Stanley Smith -

I just wanted to ask how will this help? Not to be rude but this just seems to take the hard drive out leaving the computer completely useless. How does this repair the computer?

Gabriel thecoolta -

How does this repair the computer?

Reverse the steps, but replace the old hard drive with the new hard drive.

corbinmunce -

My ribbon cable located across the HDD was split. Can I still use it?

Tom -

Excellent instructions. Though, in my case i found step 9 unnecessary; screwed new drive into enclosure and it slid right into place, easy squeezee.

Patrick Tueth -

Screw Layout

On my laptop, Asus X555U, underneath it has 4 different types of screw: M2.5 x 8mm (2 of these), M2 x 9mm (4 of these), M2 x 12mm (4 of these) and last but not least, the single screw for the memory door is M2 x 5mm.

The memory door is the one not around the edge. (M2x5mm)

The two smaller, stubbier screws go in the corners on the screen hinge side of the laptop. (M2.5x8mm)

The four 9mm long screws go along the front edge of the laptop - if the left or right click on the trackpad stops working then unscrew a little until it works again. (M2x9mm)

The 4 longest screws go in the remaining places - along the sides and in the middle at the back.(M2x12mm)

I have a jpg of this if anyone needs it.

This has been collated from information on here, details on how-fixit.com, from taking the screws out of my latop after it had been repaired and returned and another post that I can no longer find!! I hope you find this useful.

I have not managed to find all of this information collated anywhere else on the internet!

davidafloat -

the steps in which you are asked to disconnect cables are totally useless and, as shown by some requests for help, even dangerous

giulia lizzani -

Note that once disassembly is complete, the new drive can be tested by plugging in an external mouse and keyboard. The laptop boots and runs fine (but be careful of the exposed cooling fan).

The drive can be tested just plugged into the SATA port

With the drive in the caddy and the USB/sound/SD card daughterboard in place, you can also test those before completing re-assembly.

Martin Payne -
