Asus X55C CPU Intel Replacement

Geschrieben von: ZFix
  • Kommentare: 5
Asus X55C CPU Intel Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

25 - 35 Minuten

Einleitung

How to disassemble the laptop and replace the Processor.

_______________ Video manual: _______________

  1. ZsPn2gciwXZ4OhSd

    • Switch off the laptop and remove the battery.

  2. SUmbC1UDLRQXUtoN
    SUmbC1UDLRQXUtoN
    HO4xJkjW41QjJJvE
    1Vov4yDwUYZlSRqx

    • The Keyboard is held by 5x locking clips.

    • Pick up a little the one side of the Keyboard and start opening the clips one by one.

    • Disconnect the Keyboard flex cable from the mother board and remove the KB.

    • Please SUBSCRIBE to my channel ツ

  3. ife5PZH2hgxjDlOm
    ife5PZH2hgxjDlOm
    YpHOPjJUVsPRmHGd

    • Remove 3x Philips screws.

    • Disconnect the two small flex cables:

    • Power On button flex cable

    • Touch pad flex cable

  4. OMZrMJVu1pOeWObB
    OMZrMJVu1pOeWObB
    GetG12vufKB4iJ1V
    SXjJGpSsLIE2TO5l

    • Unscrew the two Philips screws and remove the HDD / RAM Cover.

    • Remove three screws securing the hard drive caddy (hard drive assembly).

    • Slide the hard drive assembly to the left to disconnect it from the motherboard.

  5. maQD2bwvKHhhNhMe
    maQD2bwvKHhhNhMe
    VtN35J3KWa2YaSiE

    • Disconnect the two coaxial antenna cables from the Wi-Fi card.

    • Remove any Memory or Dummy card.

  6. wUsx5FLKnZlpTKtP
    wUsx5FLKnZlpTKtP
    vkcbYETl15slOugd
    eYnIUmnSYiI6dsKB

    • The bottom cover is held by 10x Phillips screws. Remove them.

    • With a plastic tool separate the Upper cover and remove it.

  7. 61hOnBIgXpsBlEk1
    61hOnBIgXpsBlEk1
    VjcEbNEPU3ZYJGev
    3WUqs1a6OBLZDjsM

    • Disconnect:

    • The Microphone cable

    • The LCD Display flex cable

    • Remove 3x Pillips screws.

    • Lift the board first from the right edge.

    • There is another one cable, from the DC connector, connected to the underside of main board. We should spun the the board to disconnect the DC connector cable.

  8. 1PF5TjubRN1sUPSV
    1PF5TjubRN1sUPSV
    QvVqFP3GLxijJ4r1

  9. KCWQgIVIWTnxNVcg
    KCWQgIVIWTnxNVcg
    TFgBAADOehCxatu5
    yH1teGyGPhypVsrn

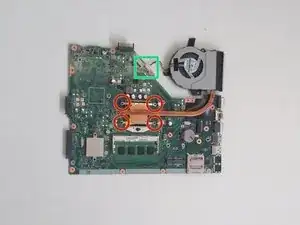

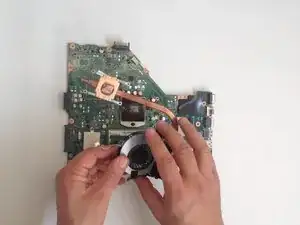

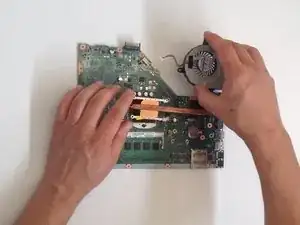

    • Disconnect the Fan cable from the Motherboard.

    • Remove the screws (4x Phillips screws) that hold the cooling system to the Motherboard

    • Remove the Cooling System.

  10. wWKc3GupgUB5WrjW
    wWKc3GupgUB5WrjW
    jHtYBiy2eOkLQdwo
    QgAhBjjwByFq4eRy

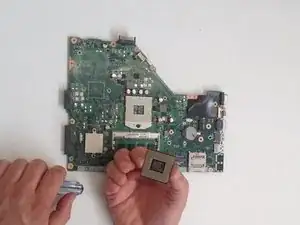

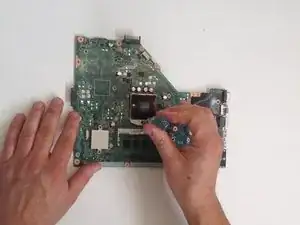

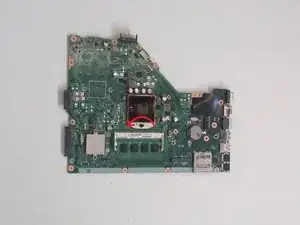

    • Counter clockwise release the screw securing the CPU using a flat head screwdriver.

    • Guideline, lift with equal pressure on two sides of the processor chip to avoid bending any of the pins.

    • Intel Core i3-2370M

    • Before installing the new CPU, clean the Cooling system and put new thermal compound / paste.

Abschluss

To reassemble your device, follow these instructions in reverse order.
