Asus X55C Fan/Heat Sink Cleaning and Thermal Past Application

Geschrieben von: ZFix
  • Kommentare: 0
Asus X55C Fan/Heat Sink Cleaning and Thermal Past Application

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

30 - 35 Minuten

Einleitung

If your system overheating, we show you how to disassemble it, clean the Cooling system and replace the CPU Thermal paste.

_______________ Video manual: _______________

  1. ZsPn2gciwXZ4OhSd

    • Switch off the laptop and remove the battery.

  2. SUmbC1UDLRQXUtoN
    SUmbC1UDLRQXUtoN
    HO4xJkjW41QjJJvE
    1Vov4yDwUYZlSRqx

    • The Keyboard is held by 5x locking clips.

    • Pick up a little the one side of the Keyboard and start opening the clips one by one.

    • Disconnect the Keyboard flex cable from the mother board and remove the KB.

    • Please SUBSCRIBE to my channel ツ

  3. ife5PZH2hgxjDlOm
    ife5PZH2hgxjDlOm
    YpHOPjJUVsPRmHGd

    • Remove 3x Philips screws.

    • Disconnect the two small flex cables:

    • Power On button flex cable

    • Touch pad flex cable

  4. OMZrMJVu1pOeWObB
    OMZrMJVu1pOeWObB
    GetG12vufKB4iJ1V
    SXjJGpSsLIE2TO5l

    • Unscrew the two Philips screws and remove the HDD / RAM Cover.

    • Remove three screws securing the hard drive caddy (hard drive assembly).

    • Slide the hard drive assembly to the left to disconnect it from the motherboard.

  5. maQD2bwvKHhhNhMe
    maQD2bwvKHhhNhMe
    VtN35J3KWa2YaSiE

    • Disconnect the two coaxial antenna cables from the Wi-Fi card.

    • Remove any Memory or Dummy card.

  6. wUsx5FLKnZlpTKtP
    wUsx5FLKnZlpTKtP
    vkcbYETl15slOugd
    eYnIUmnSYiI6dsKB

    • The bottom cover is held by 10x Phillips screws. Remove them.

    • With a plastic tool separate the Upper cover and remove it.

  7. 61hOnBIgXpsBlEk1
    61hOnBIgXpsBlEk1
    VjcEbNEPU3ZYJGev
    3WUqs1a6OBLZDjsM

    • Disconnect:

    • The Microphone cable

    • The LCD Display flex cable

    • Remove 3x Pillips screws.

    • Lift the board first from the right edge.

    • There is another one cable, from the DC connector, connected to the underside of main board. We should spun the the board to disconnect the DC connector cable.

  8. 1PF5TjubRN1sUPSV
    1PF5TjubRN1sUPSV
    QvVqFP3GLxijJ4r1

  9. LLfLprsRCMSIO32q
    LLfLprsRCMSIO32q
    WbSwLYsNeElQotXd
    5xEDYvPtVCqutQcU

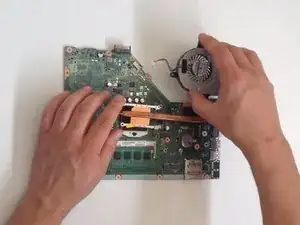

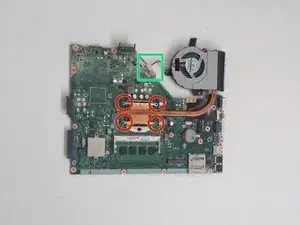

    • Disconnect the Fan cable from the Motherboard.

    • Remove the screws (4x Phillips screws) that hold the cooling system to the Motherboard

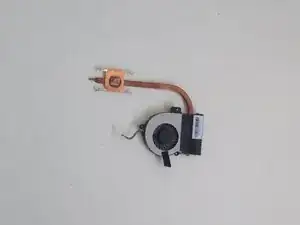

    • Remove the Cooling System carefully, if you don't want to break the CPU.

  10. AvFP2vOC5IOWgqT5
    AvFP2vOC5IOWgqT5
    sNtHSOuQOvDcXdaB
    brMEEQbGhPoKfPxt

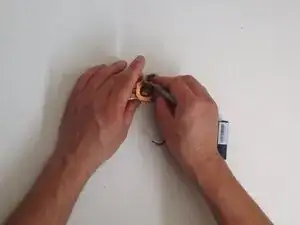

    • Use a lint-free cloth to clean the old thermal compound.

    • If the thermal compound is solidified, you can use a flat end of any plastic tool to scrape it off.

    • Use again cloth with isopropyl alcohol to clean the Thermal surface.

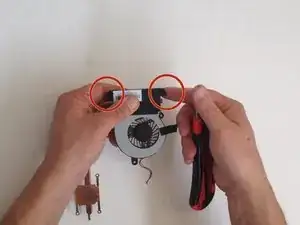

    • The Fan and Headsink are held together with a large black bar. Removing the tape at both ends, to separate the Fan from the Headsink.

    • Use a soft anti static brush and clean the Heatsink on the inside.

  11. qQFGGswmKuYuDJXE
    qQFGGswmKuYuDJXE
    dloayX66TsCT5Jdc
    NWMYGbuYhia5FJOY

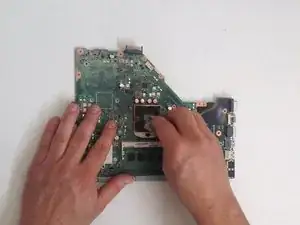

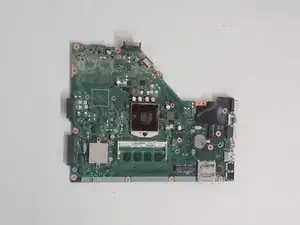

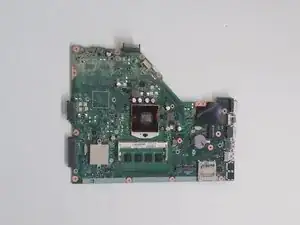

    • Use the same technic to clean the surface of the processor from the old thermal compound

    • Be carefully,if you don't want to break the CPU.

  12. 1IRjolYiqnMUCicg
    1IRjolYiqnMUCicg
    EDnigBGeuEGIApyQ
    jKGECctiTSwuh5jx

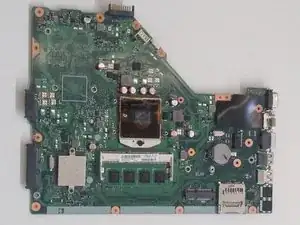

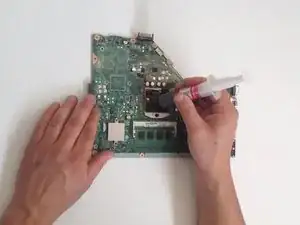

    • Dispense a small amount of thermal compound and gently smear it over the entire processor surface.

  13. XuOfbKblZe5H46kS
    XuOfbKblZe5H46kS
    QxIwPDhkTyNGfw3Y
    hhNER6ZADdATXlTs

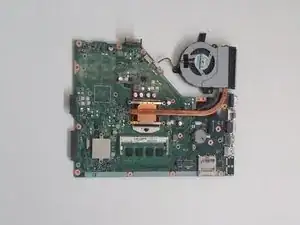

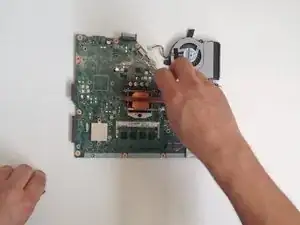

    • Careful install the Cooling system with even pressure from all sides, and the bead that you placed on the surface will spread over the entire contact surface.

    • .

    • .

    • .

    • .

    • Did you do it successfully?

Abschluss

To reassemble your device, follow these instructions in reverse order.
