Asus X55C HDD (Hard Disk Drive) Replacement

Geschrieben von: ZFix
  • Kommentare: 2
Asus X55C HDD (Hard Disk Drive) Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

We will show you how to open the laptop and change / upgrade the HDD (hard disk drive).


Please SUBSCRIBE to my channel ツ

  1. tIDMSq5KR1116JGv
    tIDMSq5KR1116JGv
    yMERbvEjHYGTB6Kl
    UfWXBRuCxONI6NSx

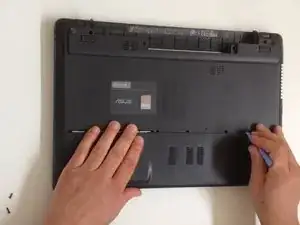

    • Switch off the Laptop and remove the Battery.

    • Unscrew the two Philips screws and remove the HDD / RAM Cover.

  2. UNXKMxkmBkMLNiEM
    UNXKMxkmBkMLNiEM
    6JkUXDH5utBEdLwU
    11qKb3VPZ1Ufgr1g

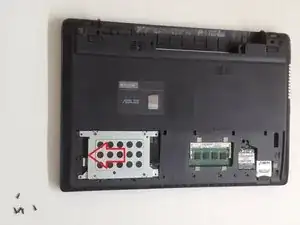

    • Remove three screws securing the hard drive caddy (hard drive assembly).

    • Slide the hard drive assembly to the left to disconnect it from the motherboard.

  3. jNrvT2VcLEGlYGaj

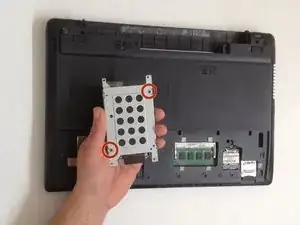

    • Remove the two Philips screws and separate the HDD from the caddy case.

    • You can install 2.5" SATA HDD, 5400rpm / 7200rpm, 320GB / 500GB / 750GB /1TB.

    • After changing / upgrading the HDD you must install an operating system or clone & copy the information from the old HDD to the new one.

    • .

    • Did you do it successfully.

    • Please SUBSCRIBE to my channel ツ

    Okay so I was needing to upgrade hdd on this exact model and it worked great for the first part but putting the cover on didn’t work any ideas?

    Eject tech tips -

Abschluss

To reassemble your device, follow these instructions in reverse order.
