Asus X55C Wi-Fi Half mini PCIe lan card Replacement

Geschrieben von: ZFix
  • Kommentare: 1
Asus X55C Wi-Fi Half mini PCIe lan card Replacement

Schwierigkeitsgrad

Very easy

Schritte

2

Zeitaufwand

2 - 5 Minuten

Einleitung

How to replace the half mini PCIe Wi-Fi (Wireless) Lan Card.


Please SUBSCRIBE to my channel ツ

  1. F436DYhccYxRk5UI
    F436DYhccYxRk5UI
    J2WbGcvQCgK3DAal
    nUXS2LgDeeS1hs3m

    • Switch off the Laptop and remove the Battery.

    • Remove two screws securing the HDD / RAM (service) cover.

    • Remove the cover.

  2. T3lAQjPkYOMbVdsR
    T3lAQjPkYOMbVdsR
    L61bPMBlmyNHkUcR
    UVfpvOCGmFetqoSp

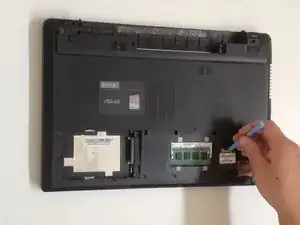

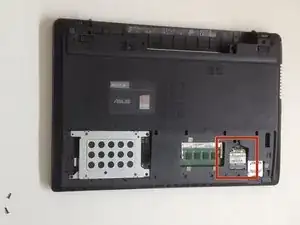

    • The Wireless card is held by one small Philips screw. Remove it.

    • Disconnect the two coaxial cables (Wi-Fi and Bluetooth).

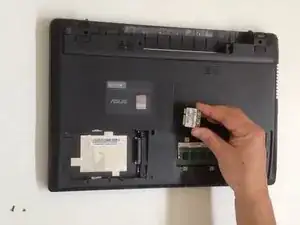

    • Remove the Wireless Lan card.

    • This is: Half Mini PCIe Wi-Fi card.

    • .

    • Did you do it successfully.

    • Please SUBSCRIBE to my channel ツ

Abschluss

To reassemble your device, follow these instructions in reverse order.
