Asus X751L Battery Replacement

Geschrieben von: John Enderton
  • Kommentare: 6
Asus X751L Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

This guide will walk you through the process of replacing a broken or faulty battery on the Asus X751L.

  1. 6NO2mjZgIRwYHwmd

    • With the screen closed, place your laptop upside-down with the front facing you.

    • Remove the six 14.6mm Phillips #00 screws.

    • Remove the four 6.6mm Phillips #00 screws.

  2. Rp6txLloBjp2LQGi

    • Flip the laptop over and open the lid.

    • Pry around the edges of the laptop base using the plastic opening tool.

    • Prying too hard can break the plastic clips.

  3. 3wJp2NtZreYuY5EY
    3wJp2NtZreYuY5EY
    WIGvp3Z3NnramqyP
    WSSRSq51UdTUxAut

    • Carefully lift the keyboard up.

    • Be very careful when lifting the keyboard up. Two zero insertion force (ZIF) cables are between the keyboard assembly and the motherboard. Do not lift the assembly too high.

    • Disconnect the two ZIF connectors from the motherboard using your fingernail to lift the cream-colored tab.

  4. JFXcLwiynYnBWoiE

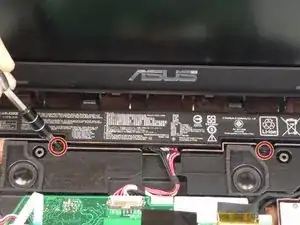

    • Remove the two 6.6mm Phillips #00 screws holding the battery in place.

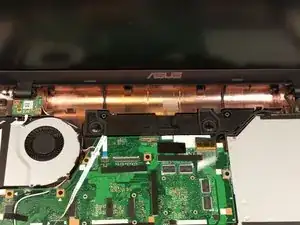

  5. OVXsylCwLJJrrBWV
    OVXsylCwLJJrrBWV
    wLuhmqRvaTTKBSFo

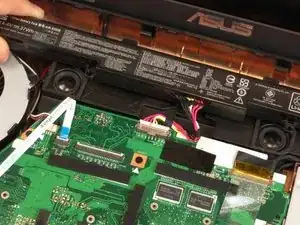

    • Lift the battery from the cable-side to maneuver it around the plastic clips.

  6. ZcXYvodsAS3cheSo
    ZcXYvodsAS3cheSo
    vWfaxMsmdoDFRAfc
    FMVhM5EET1mYgUG5

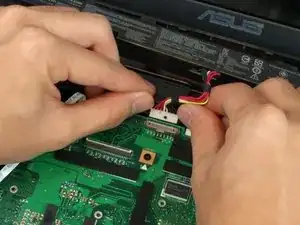

    • Using your finger nails, gently push the battery cable out of the connector on the motherboard.

    • Once the cable is disconnected, you can remove the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
