Asus X751MA-DH01TQ Keyboard Replacement

Geschrieben von: Darren Kim
  • Kommentare: 0
Asus X751MA-DH01TQ Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

  1. tKaMROQdJlUbDbMr
    tKaMROQdJlUbDbMr
    weKLFGwajieyVVui

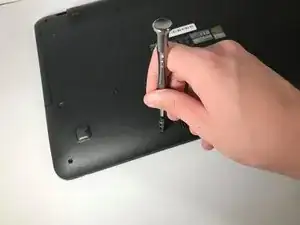

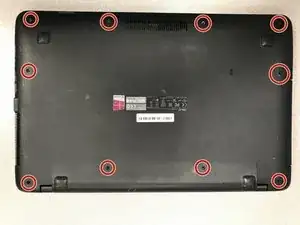

    • Turn the laptop upside down and locate the ten screws holding in the plate cover.

    • Remove all ten screws using a PH00 screwdriver.

  2. 2Vlid6IryTD2LKAn

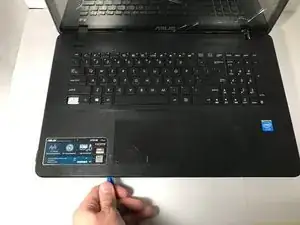

    • Once the screws are out, open up the laptop and use the plastic opening tool on the keyboard and the back to pry it open.

  3. ogL51CLFAeVWNMsk

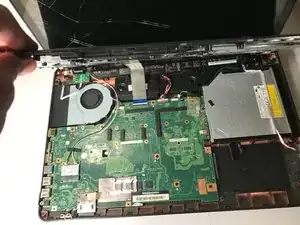

    • Separate the keyboard from the computer to expose the inside of the computer.

  4. aJbZswweC3Kv6E2T
    aJbZswweC3Kv6E2T
    KNrQW3CPAKWJfGcr
    QRnimayStACC5wbA

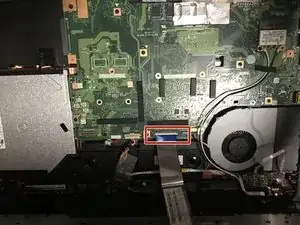

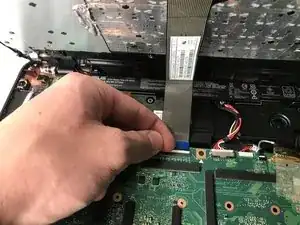

    • Flip up the white connector.

    • Take the blue cable out of the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
