Einleitung

If you try to get your touchpad to respond but it won't, it may need to be replaced. This guide will take you through the replacement process of the touchpad.

  1. GD4EmNtKDCVKtcN2
    GD4EmNtKDCVKtcN2
    2StRfSbL3clx6fGo

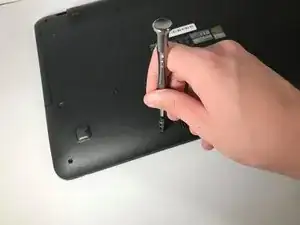

    • Turn the laptop upside down

    • Unscrew the ten screws on the bottom with the PH00 screwdriver bit.

  2. LdNAgbwZvubVNnTK
    LdNAgbwZvubVNnTK
    mx6clAbfYmCcJOmE
    LFDFRptioZEp4qlc

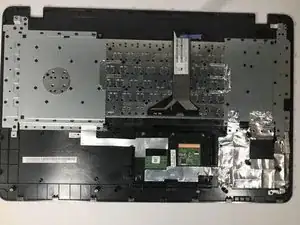

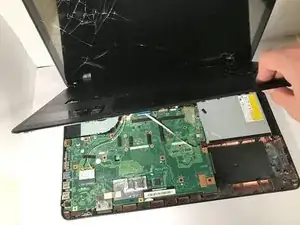

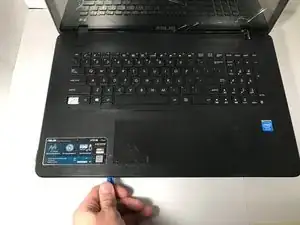

    • Open up the laptop.

    • Using the plastic opening tool, open up and disconnect the keyboard from the base.

    • Take the keyboard off and put it upside down.

  3. FNcW4d25kaOv4fHB
    FNcW4d25kaOv4fHB
    AMR2VRJamaBBJVeW
    jN2D1fFkfn13LXqt

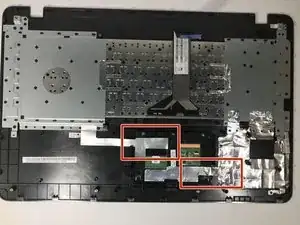

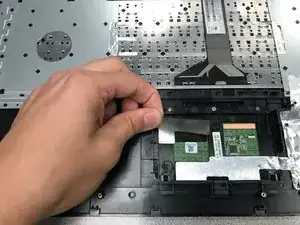

    • Peel off the silver stickers that are attaching the touch pad to the back part of the keyboard.

  4. dgbdJX4VIxk2pDwP
    dgbdJX4VIxk2pDwP
    vYL2ZpLBHqcg1yV5

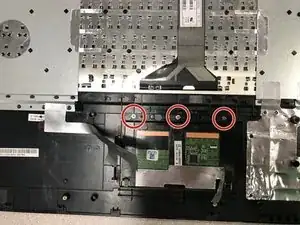

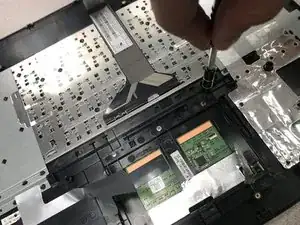

    • Unscrew the three 4mm screws on the touch pad with a PH00 screwdriver.

  5. yWNX6FMBIL5L6mYQ

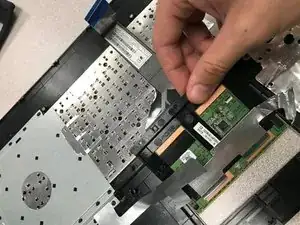

    • Grab the touch pad and slide it out to replace it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
